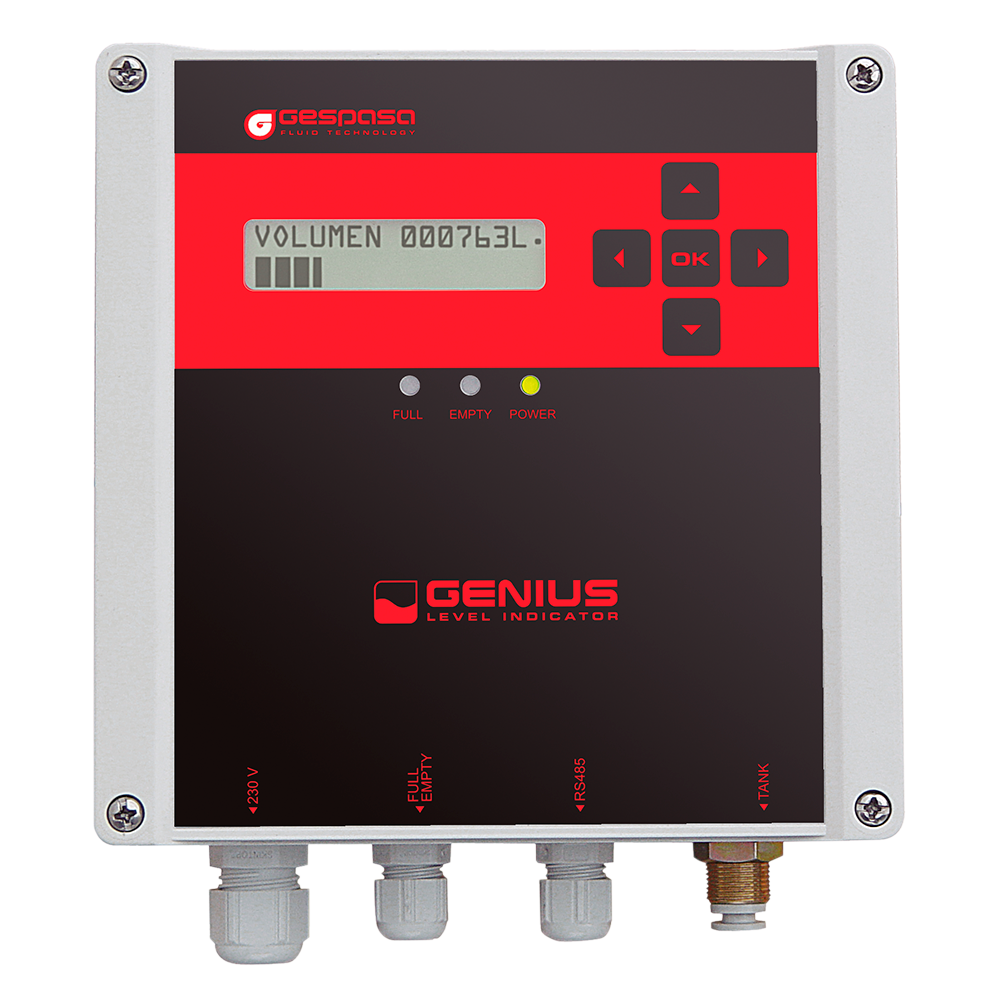

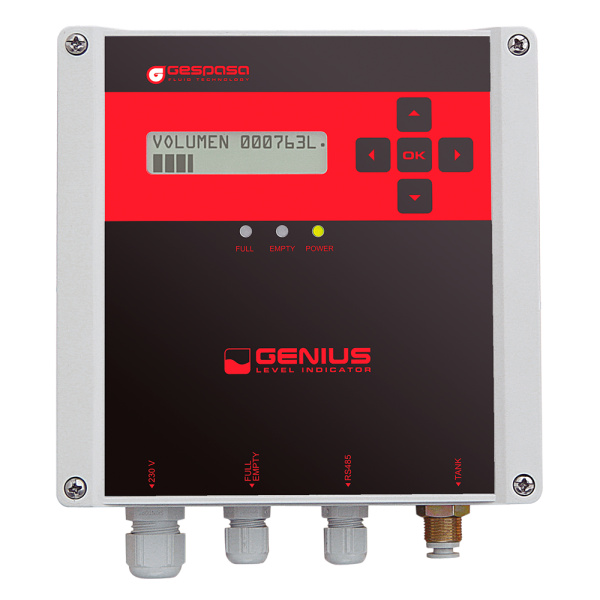

GENIUS 230V AC LEVEL INDICATOR

• GENIUS is a level monitor in atmospheric tanks.
• The level measurement is made measuring the static pressure of the liquid height through a tube into the tank.
• It allows to measure the level in rectangular and cylindrical, horizontal or vertical, tanks with a maximum height of 4 m.
• Level reading in height (mm or inches) or volume (litres or gallons)
• It is suitable for liquids with a maximum viscosity of 30 cSt.

• Probe with 10 metres of tube (extending at 50 m maximum) of 6 mm and with a weight in the other end that is immersed in the liquid till touching the bottom.
• Control unit to see the liquid level and configuration
• Two outlets to connect two alarm or control devices
• PC communication connection via RS485 port
• Acoustic alarm in its inner of 90 dB and 2400 Hz

TECHNICAL FEATURES:

• Power: 230 VAC · 110 VAC · 15-32 VDC
• IP-55 Koruma
• Accuracy: ±1 % in height
• Resolution: 5 mm

• Tank type and dimensions, calibration
• Level alarms
• Level reading type
• Measuring unit

• According to the programmed alarm levels, the control unit will activate or deactivate the contacts, acting as a remote switch for the alarm device operation or the connected control kit operation.
• PC communication kit through the RS-485 communication port
• Connection to PC or GK-7 controller or similar
