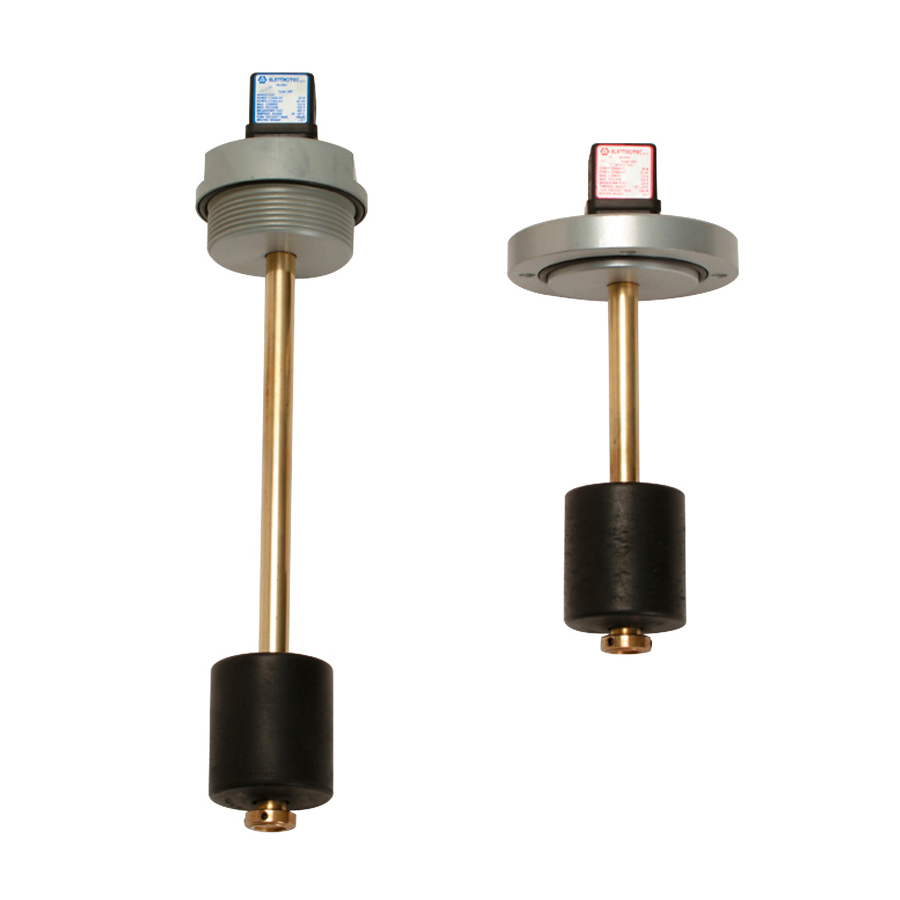

LM1 / LM2 / LMM1 GA – GTA – Level switches

Body material	Pirinç
Float material	NBR
Mounting material	Anodized aluminium
Actuation point	LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO
Montaj	GA – Flange Ø 92 / GTA – Thread G2”
Elektrik bağlantısı	DIN 43650 – PG09 – IP65
Switching capacity	LM1/LMM1 – 60W/VA / LM2 – 30W/VA
Current	LM1/LMM1 – 0.8A (resistive) / LM2 – 0.5A (resistive)
Voltage	220V – 50Hz
Temperature range	-10°C +80°C
Maks. basınç	10 bar
Fluid specific gravity	0.7 kg/dm³
Fluid viscosity	150 cSt
Certification	RINA – Lloyd’s Register – Germanischer Lloyd
Size	Max. lenght 2500 mm
