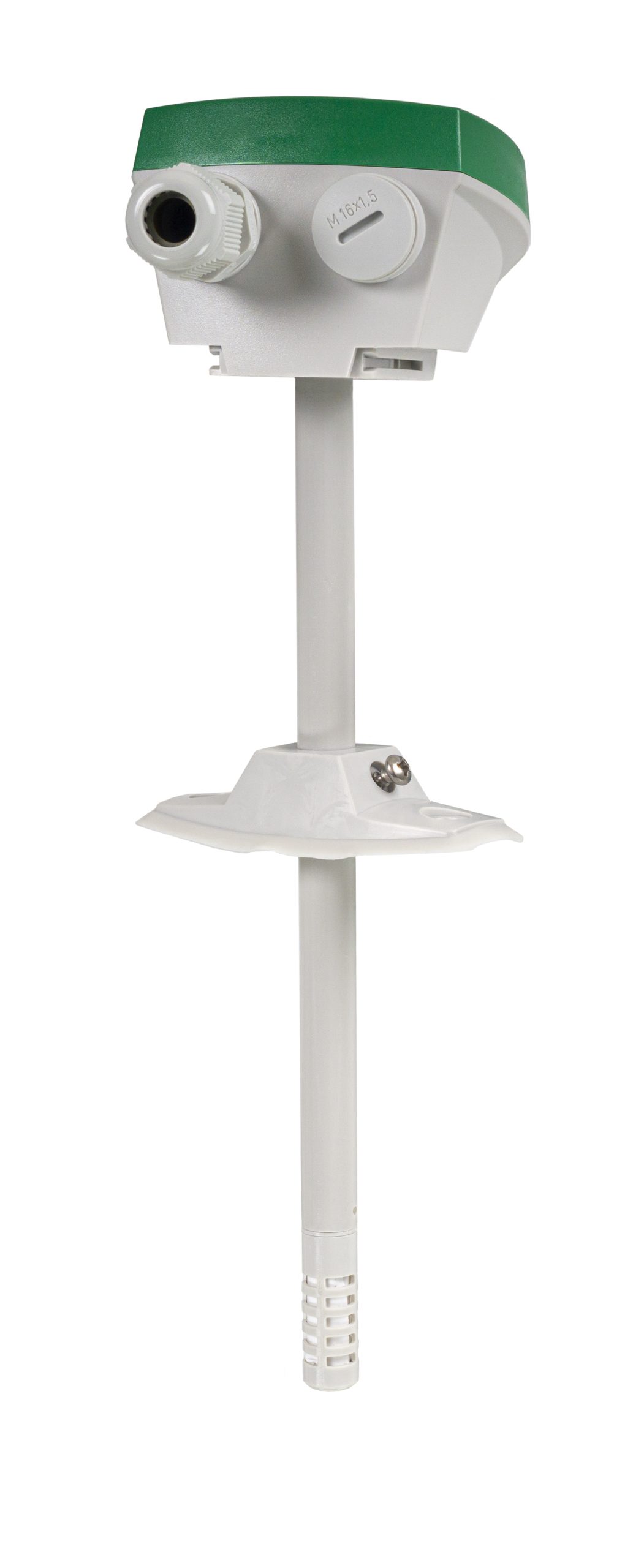

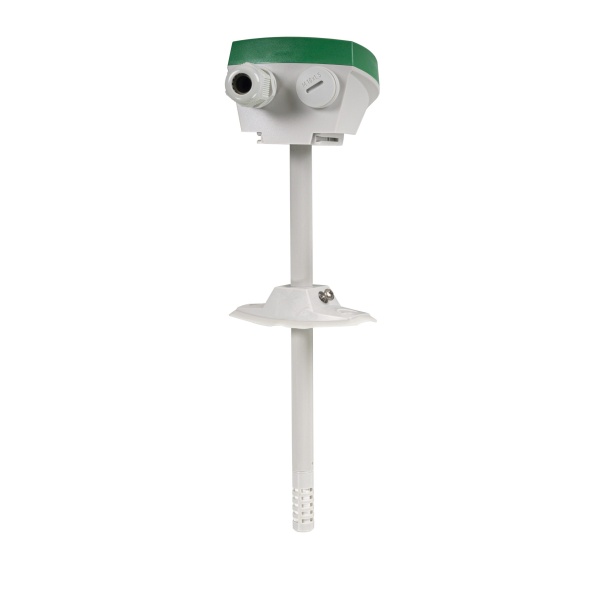

Name: DTTH
SKU: DTTH
Availability: InStock

Teknik Özellikler

Specificaties voor DTTH
Güç kaynağı	24VAC/DC (20…28 V AC 50/60Hz / 15…35 V DC), 2.0 VA
Boyutlar, dış (GxYxD)	104x212x79 mm
AO	3
Max air velocity	20 m/s
Media temp limits	-40…60 °C
Insertion length	37…195 mm
Max Overvoltage on any terminal	+10 V (refereras till GND) V
Analogue output load impedance 0…10v	Min. 10 kΩ
Measuring range, temp	-40…60 °C
Output temperature	0-10 V
Measuring range, humidity	0…100 % RH
Output humidity	0-10 V
Sensor element protection, humidity	Membrane filter, not exchangeable
Accuracy, humidity 1	±2 % RH @ 10…90 % RH
Accuracy, humidity 2	±3 % RH @ 0…10 & 90…100 % RH
Accuracy, gas in air	±(50 ppm + 3 % of the measured value) @ 25 °C
Yanıt süresi	<50s
Warm-up time	4min
Temperature dependance	2.5 ppm/K at 0…50 °C

DTTH
