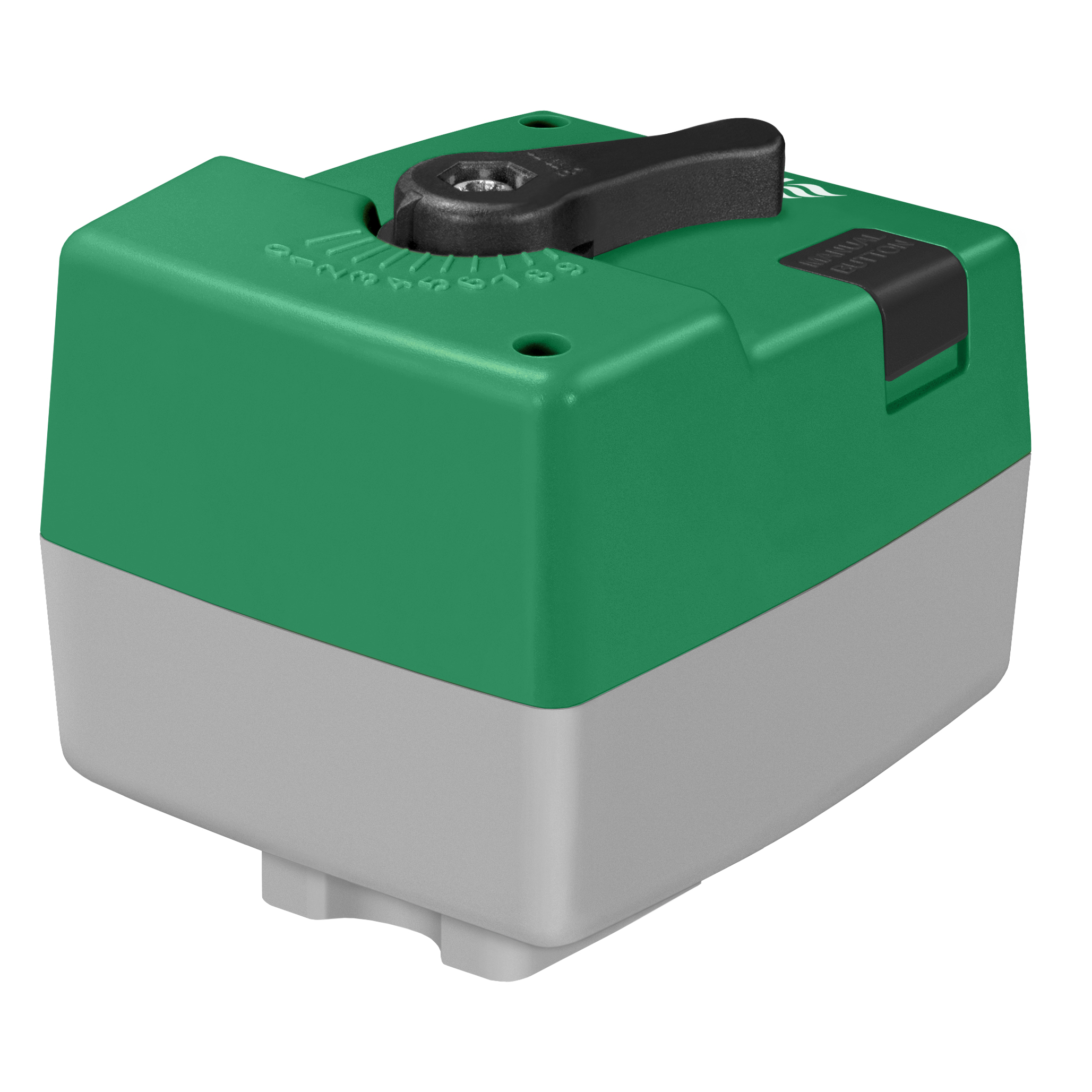

RVAB4-24

RVAB4-24

Ball valve actuator with bi-directional motor mainly used in central air-conditioning systems, heating systems, water treatment, and production industry to control the flow of cold/hot media.

Beskrivelse
Downloads

Specifikationer

Specificaties voor RVAB4-24
Supply voltage	24 V AC
Strømforbrug	3 VA
Torque	4 Nm
Control signal	Floating (3-point) or On/ off (3-wire)
Running time, actuator	45 s

Specificaties voor Ball valve actuator for BV2/BV3 valves
Beskyttelsesklasse	IP54
Omgivende luftfugtighed (ikke-kondenserende)	10…90 % RH
Opbevaringstemperatur	-30…70 °C
Working angle, rotation	90 °
Connection towards valve	Square 9 mm hole with M5 screw on valve
