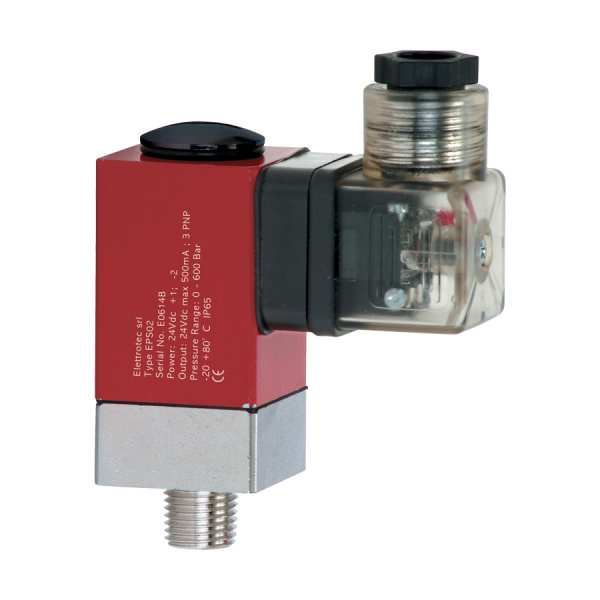

EPS02 – Electronic pressure switch with ceramic sensor

Strømforsyning	24Vcc ±15%
Current consumption	25mA
Trykkområde	0…2bar; 0…5bar; 0…10bar; 0…20bar; 0…50bar; 0…100bar;0…200bar; 0…400bar
Pressure indication	Bar
Burst pressure	7 bar; 12 bar; 25 bar; 50 bar; 120 bar; 200 bar; 400 bar; 650 bar (according to the model required)
Nøyaktighet	±0,5% fs a 25°C
Materials of construction	Body: red anodized aluminium Flange: AVP nickel-plated steel Sensor: piezoresistive ceramic cell Al₂O₃ Seal gasket: NBR (standard)
Beskyttelsesklasse	IP65
Elektrisk tilkobling	DIN43650
Pressure port	G1/4 parallel (standard)
Produksjon	1 NPN or PNP Transistor Output, max. 500mA; NO or NC contact
Temperatur	-20°C…+80°C
Dimensjoner	66mm wide x 95mm high
Vekt	200 grams
Sertifiseringer	CE
Harmonized standards	EN 61000-6-3; EN 55022+A1+A2; EN 61000-6-1, EN 61000-4-2+A1+A2; EN 61000-4-3; EN 61000-4-4+A1+A2; EN 61000-4-5+A1; EN 61000-4-6+A1
