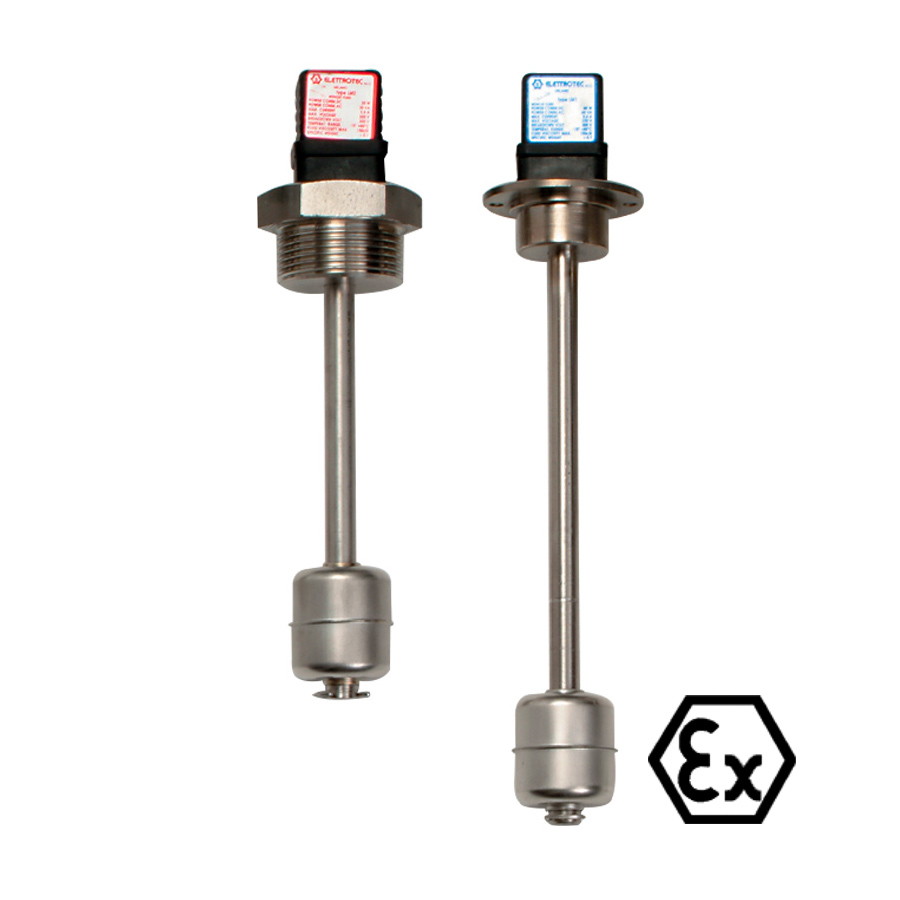

LM1 / LM2 / LMM1 FIA – TIA XIA – Stainless steel level switches intrinsic safety execution

Body material	Stainless steel AISI 316
Actuation point	LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO
Montering	FIA – Flange Ø 92 / TIA – Thread G2″
Elektrisk tilkobling	DIN 43650 – PG09 – IP65
Input capacity	Ci ~= 0
Input induttance	Li ~= 0
Input current	Ii 215mA
Max. input power	Pi 0,75W
Input voltage	Vi 30V
Temperature range	-30°C +60°C
Maks. trykk	10 bar
Fluid specific gravity	0.7 kg/dm³
Fluid viscosity	150 cSt
Certification	ATEX – II 1 G Ex ia IIC T6
Size	Max. lenght 1500 mm
Safety parameters	Intrinsic
Note	Current and power values refer to a single switch connection or to the sum of the whole connected switches
