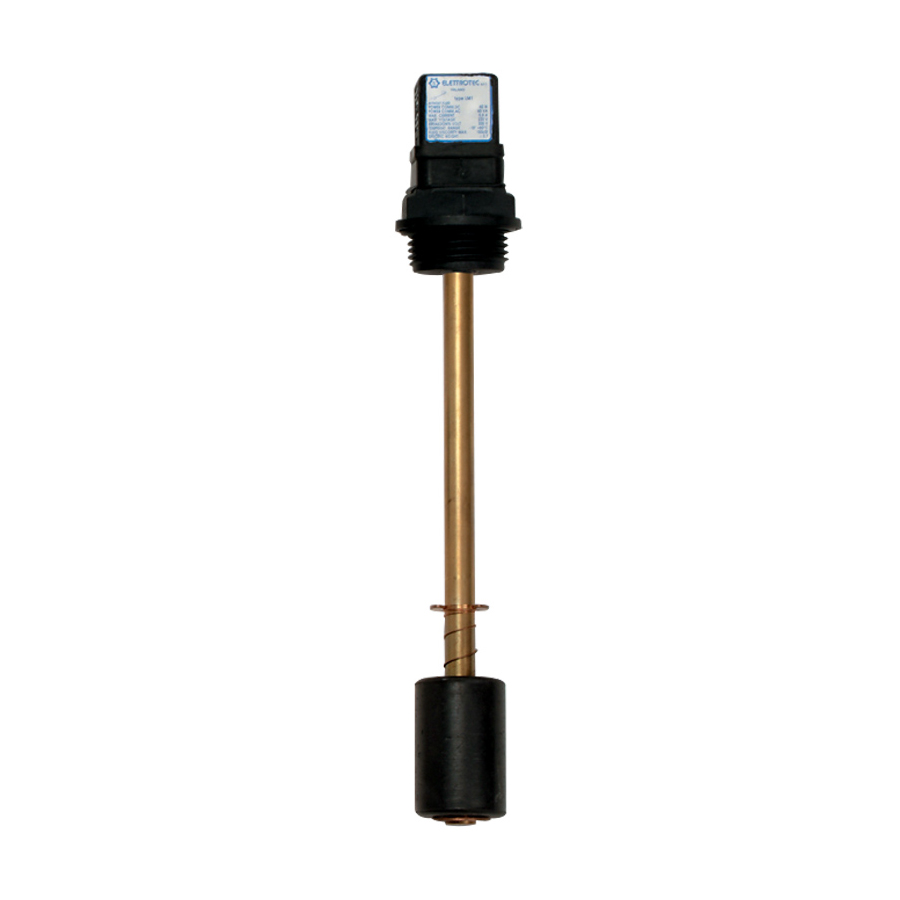

LM1 / LM2 / LMM1 FPA – TPA – Level switches with stop ring

Body material	Messing
Float material	NBR
Mounting material	Thermoplastic
Actuation point	LM1 – 1 actuation point NC/NO contact / LM2 – 1 actuation point SPDT contact / LMM1 – 2 actuation points/floats NC/NO contacts
Montering	FPA – Flange Ø 54 TPA – Thread G1”
Elektrisk tilkobling	DIN 43650 – PG09 – IP65
Switching capacity	LM1/LMM1 – 60W/VA / LM2 – 30W/VA
Current	LM1/LMM1- 0.8A (resistive) / LM2 – 0.5A (resistive)
Voltage	220V – 50Hz
Temperature range	-10°C +80°C
Maks. trykk	10 bar
Fluid specific gravity	0.7 kg/dm³
Fluid viscosity	150 cSt
Size	Max. lenght 1500 mm
