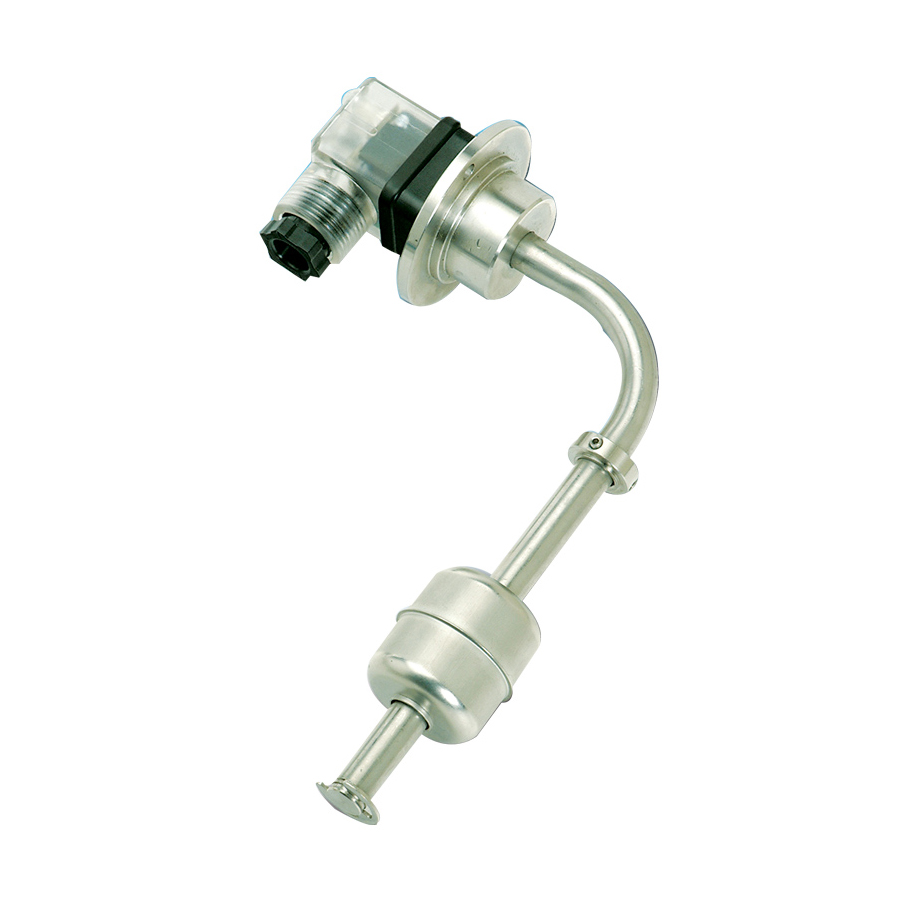

LMA1 / LMA2 / LMMA1 FA – FIA – Bent stem level switches

Body material	FA – tubo Brass / FIA – Stainless steel aisi 316
Float material	FA – NBR / FIA – Stainless steel aisi 316
Mounting material	FA – Anodized aluminium/ FIA – Stainless steel aisi 316
Actuation point	LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO
Montering	Flange Ø 52
Elektrisk tilkobling	DIN 43650 – PG09 – IP65
Switching capacity	LM1/LMM1 – 60W/VA / LM2 – 30W/VA
Current	LM1/LMM1- 0,8A (resistive) / LM2 – 0,5A (resistive)
Voltage	220V – 50Hz
Temperature range	-10°C +80°C
Maks. trykk	10 bar
Fluid specific gravity	0.7 kg/dm³
Fluid viscosity	150 cSt
Size	Max. lenght 1500 mm
