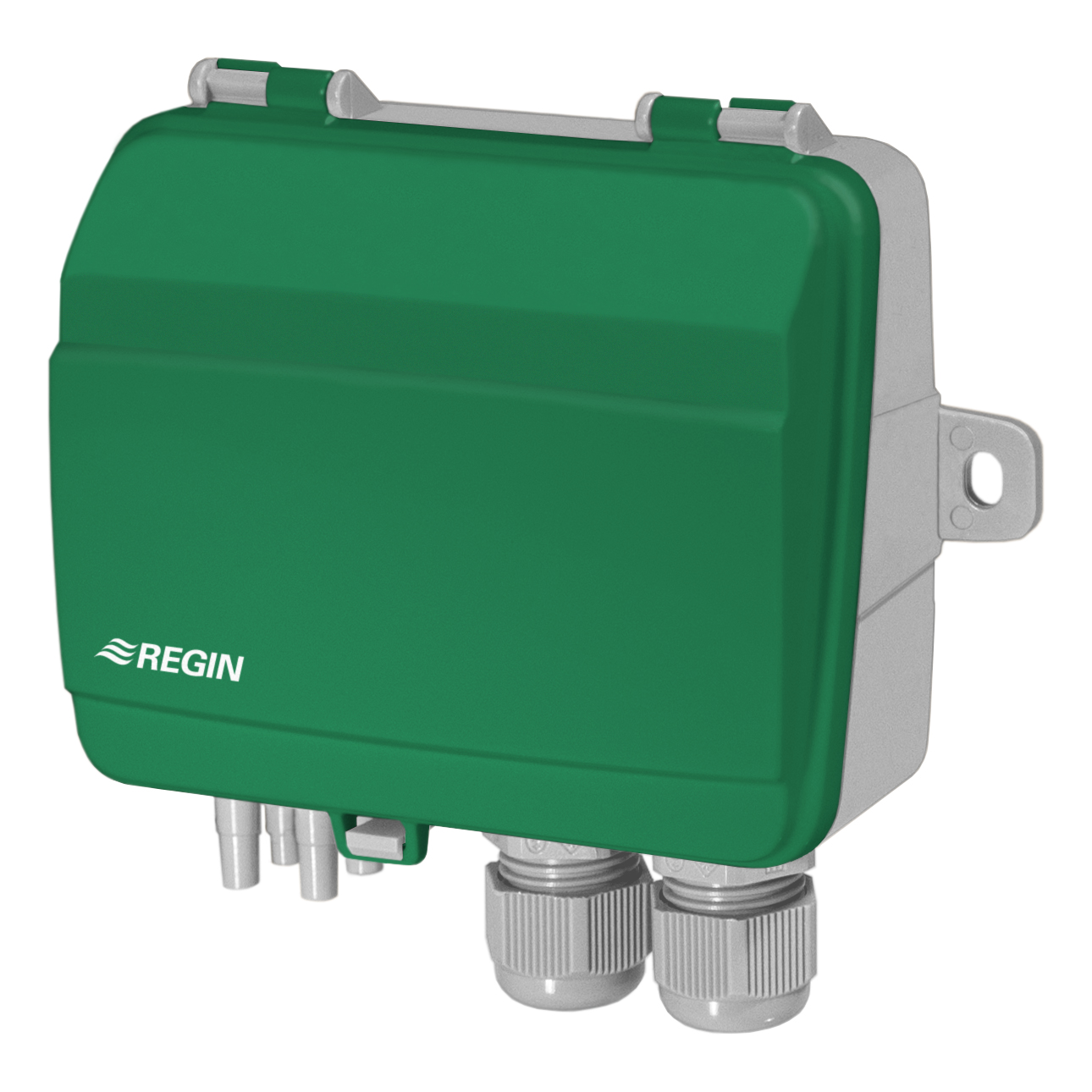

Name: PDT12S75-2
SKU: PDT12S75-2
Availability: InStock

Spesifikasjoner

Specificaties voor PDT12S75-2
Strømforsyning	24VAC/DC (21…27 V AC 50Hz / 21…27 V DC), 2.7 VA
Dimensjoner, utvendig (BxHxD)	120x40x112 mm
Max Overvoltage on any terminal	Max. ±18 V (referenced to GND) V
Analogue output load impedance 0…10v	Load impedance ≥ 10 kΩ, Output impedance ≤ 35Ω
Analogue output load impedance 4…20mA	Output is actively sourced into a resistive load impedance to signal ground. The load impedance must be between 40…500Ω
Pressure, range sensor	0…1250 Pa
Pressure, range sensor 2	0…7500 Pa
Accuracy, pressure sensor 1	≤ 1 % full scale %
Accuracy, pressure sensor 2	≤ 1 % full scale %
Max. allowed diff. Pressure sensor 1	25 kPa
Max. allowed diff. Pressure sensor 2	120 kPa

Specificaties voor Presigo (PDT…) – Differential pressure transmitters with analogue outputs
Beskyttelsesklasse	IP54
Omgivende luftfuktighet (ikke-kondenserende)	0…95 % RH
Montering	Wall
Medier	Air, non-combustible and non-aggressive gases
Analogue outputs type (AO)	0…10V or 4…20mA
Pressure, range sensor	0…1250 Pa
Kabelgjennomføring	M16x1,5
Terminal type	Screw Terminal
Terminal wire size	1.5 mm²
Materiale, hus	Polycarbonate (PC)
Material, base	Polycarbonate (PC)

PDT12S75-2
