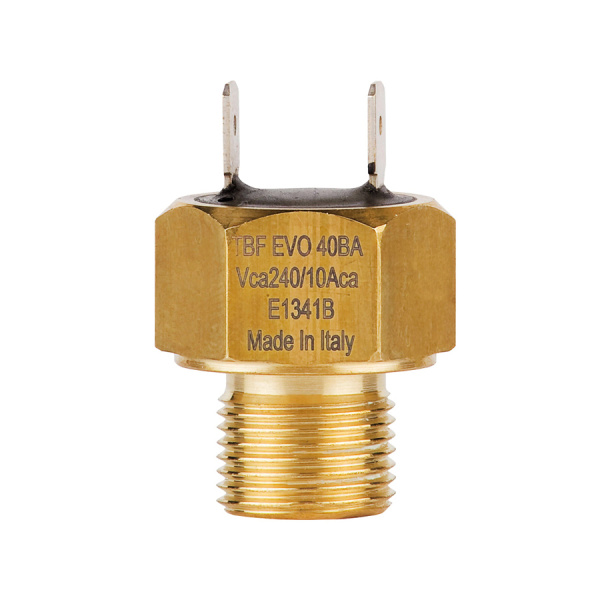

TBF evo – Economic temperature switches with fixed set-point and push-on terminals

TBF evo – Economic temperature switches with fixed set-point and push-on terminals

Beskrivelse
Nedlastinger

Bryterklassifisering	15 A / 120 Vac – 10 A / 240 Vac – 10 A / 12 Vdc – 5 A / 24 Vdc
Elektrisk tilkobling	Fast-on 6.3 x 0.8
Working temperature	25°C – 35°C – 45°C – 50°C – 55°C – 60°C – 65°C – 70°C – 75°C – 80°C – 85°C – 90°C – 95°C – 100°C – 105°C – 110°C – 125°C
Nøyaktighet	± 5°C
Max. differential DT	16°C
Environment temperature	-20°C to +130°C
Maks. trykk	200 bar
Kontakt	NO – NC
Body material	Messing
Thread connection	G3/8″ – G1/2″ – M14 x 1.5 mm
Beskyttelse	IP54 (with CAP. 1 or CAP. 10)
Dimensjoner	Body 24 AF – Height 40.5 mm
Alternativer	IP67 protection
