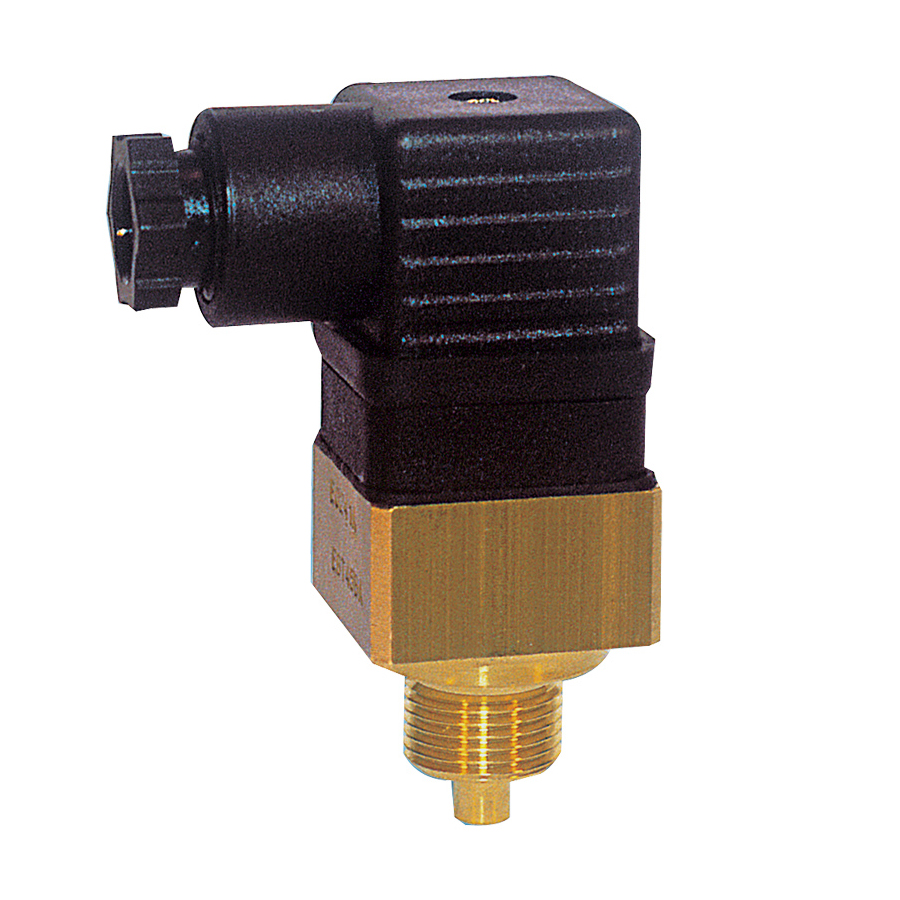

EBT – Temperature switches with fixed set-point and din-plug

EBT – Temperature switches with fixed set-point and din-plug

Beskrivelse
Nedlastinger

Bryterklassifisering	250 Vac / 10 A 24 Vdc / 5 A
Conector	DIN 43650 forma A PG09 o PG11
Working temperature	25°C – 30°C – 40°C – 50°C – 60°C – 70°C – 80°C – 90°C – 100°C – 105°C
Nøyaktighet	± 5°C
Max. differential DT	16°C
Environment temperature	-20°C to +120°C
Maks. trykk	300 bar
Kontakt	NO – NC
Body material	Messing
Thread connection	G3/8″ – G1/2″ – M22 x 1.5 mm – 1/4 NPT – G1/4
Beskyttelse	IP65
Dimensjoner	Body 30 AF – Height 80 mm
