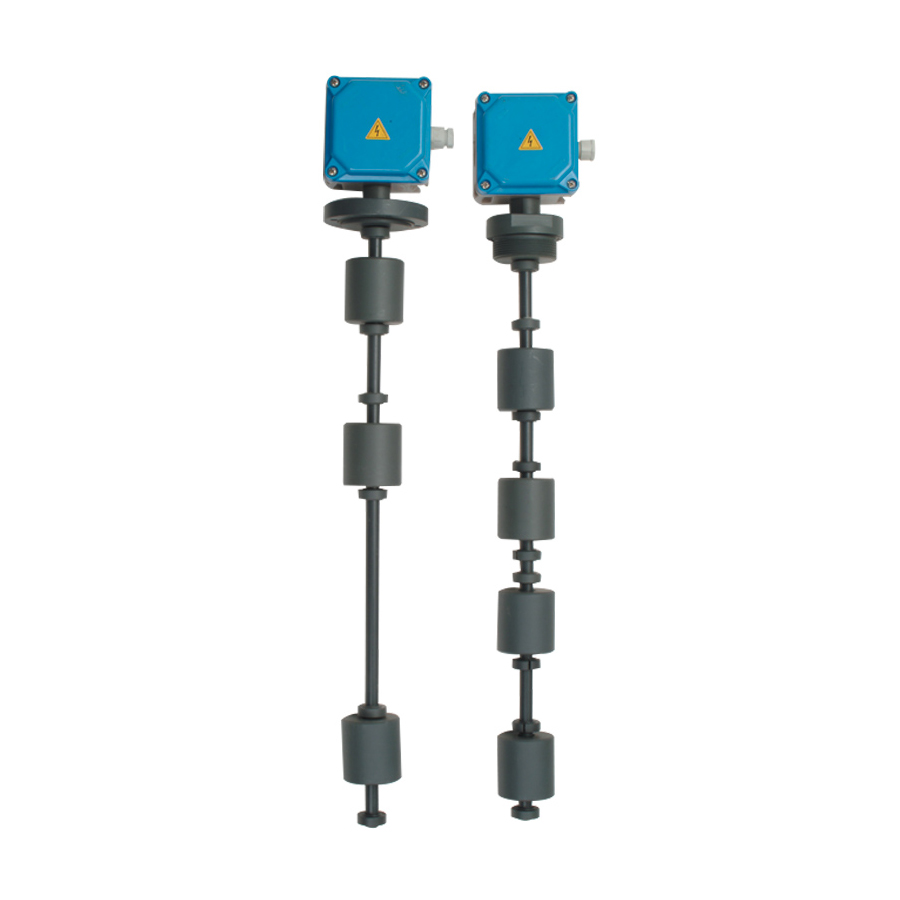

LM3 / LM4 GSPA – GPA – GTPA – PVC level switches

Body material	PVC
Float material	PVC
Mounting material	PVC
Actuation point	LM3 – 3 actuation points/floats NC/NO contact / LM4 – 4 actuation points/floats NC/NO contact
Montering	GSPA – Thread G3/8” / GPA – Flange Ø 92 / GTPA – Thread G2”
Elektrisk tilkobling	GSPA – Lead wires L. 500 mm (standard) / GPA/GTPA – junction box 92×92 mm – PG09 – IP65
Switching capacity	60W/VA
Current	0.8A (resistive)
Voltage	220V – 50Hz
Temperature range	-5°C +50°C
Maks. trykk	5 bar
Fluid specific gravity	0.85 kg/dm³
Fluid viscosity	150 cSt
Size	Max. lenght 2500 mm
