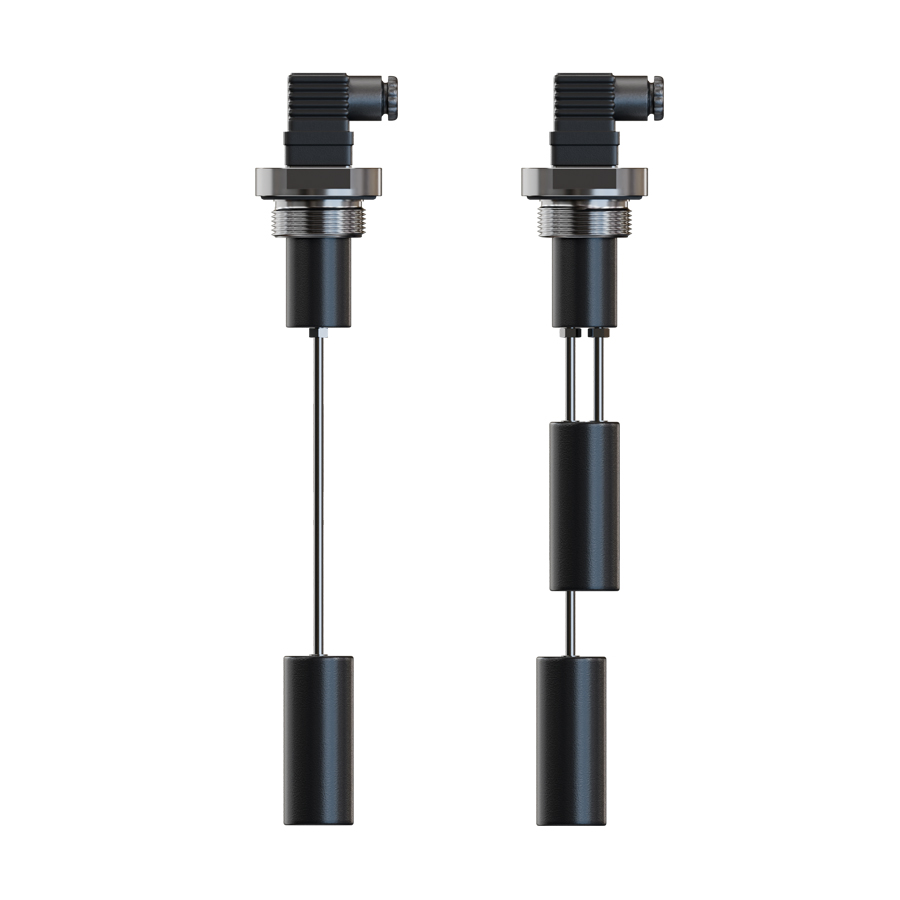

GRL – Fast level switch

Switching capacity in DC/AC	60 W/VA – 30 W/VA
Current	0.8 A (resistive) – 0.5 A (resistive)
Voltage	220 V
Capacitance	0.6 pF – 2 pF
Insulation resistance	10¹⁰ Ohm
Switch type	SPST – SPDT
Max. fluid viscosity	150 cSt
Max. Druck	10 bar
Fluid specific gravity	≥ 0.7 kg/dm³
Elektrischer Anschluss	DIN43650 – PG09
Electrical protection	DIN40050 – IP65
Temperature range	-10°C to +80°C
Flange material	Anodized aluminium
Stem material	AISI304
Switch housing	Black POM
Float material	NBR
Seal	NBR, Guarnital paper fiber, Silicone
Connector, cable gland	Nylon 6.6 – PA66 or PA66+GF
