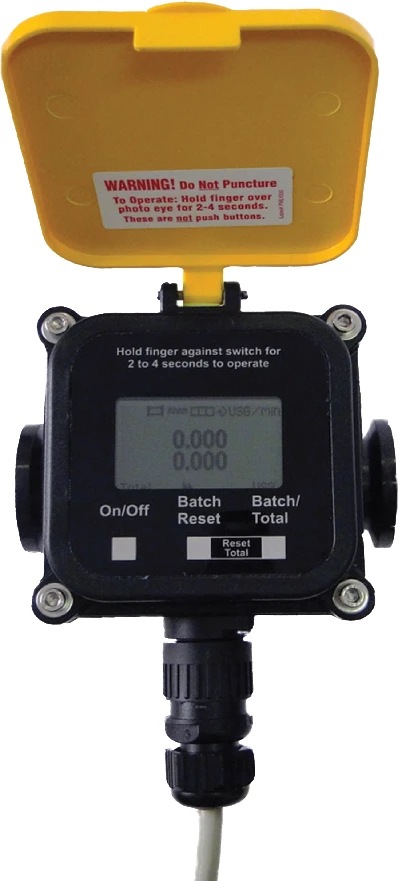

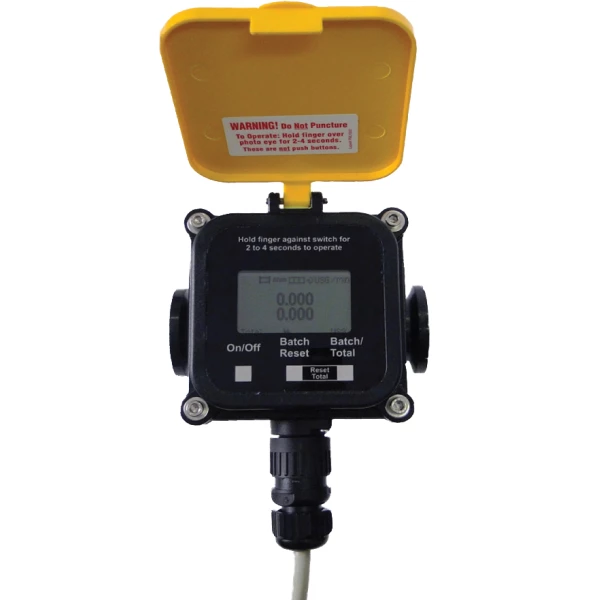

Agri Mag P2 Digital Mag Flow Meter 50mm
Data logger, RS485, 4-20mA output
Flow range 1.9 - 18.9 l/s (full scale)
Accuracy +/- 1% of readout between 10-100% of full scale
Accuracy +/- 3% of reading between cut-off and 10% of full scale
Accuracy +/- 1% of readout between 10-100% of full scale
Accuracy +/- 3% of reading between cut-off and 10% of full scale
- No moving parts, polypropylene construction
- 9-35V DC power supply
- Display: Rate & Total + reset
- 4-20 mA Current loop output
- RS485 Modbus RTU output
- IP67 housing
- 10 Bar (150 psi) Max. pressure
- 50 degrees C Max. temperature
- Choice of connection types
The Agrimag is a low-cost direct current powered electromagnetic current meter that has a full pass and no moving parts, so is very tolerant of dirt and sediment etc. Suitable for water and any liquid with a conductivity of 20 µS/cm (e.g. based)
Applications
- Irrigation and abstraction
- Pesticides & Fertilizers
- Dosing and addition of chemicals
- Groundwater measurement
- Water monitoring & control
