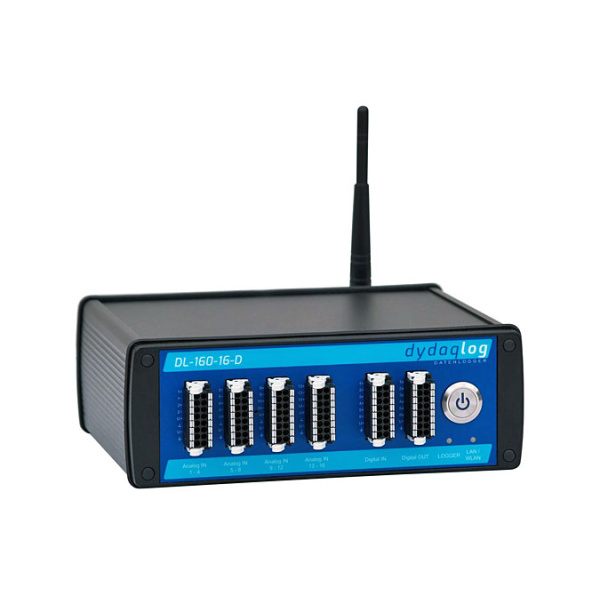

Datenlogger DL-DYDAQLOG - Image 2

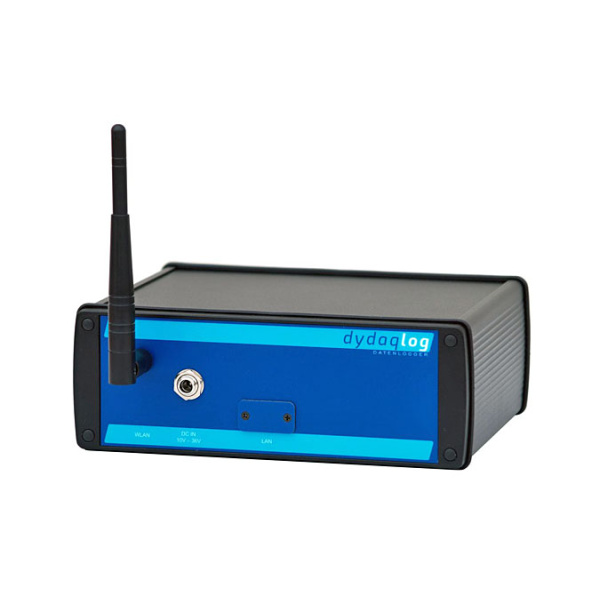

Datenlogger DL-DYDAQLOG - Image 3

Datenlogger DL-DYDAQLOG

Technical Characteristics

Sensor input: 16 x analog (differential) ± 20 mA / 0...20 mA, 6 x digital (opto-decoupled)
Sensor signal: thermocouples type B, E, J, K, N, R, S, T, PT50 / 100 /500 / 1000, resistors, measuring bridges (6-wire technology)
Output: 6 x digital (electronic relays)
Power supply: 10...36 VDC
Operating temperature range: 0...+40 °C
Housing: aluminum, splash-proof
Interfaces: WLAN / LAN
Options: 2G/4G mobile network (sending messages, emails)
Software: for further data processing

Description
Downloads

Compact and robust aluminum housing - splash-proof all around
16 analog inputs with 24-bit resolution and 10 Hz sampling rate
All analog inputs can be configured independently of each other
Direct connection of thermocouples, PT50/100/500/1000 and strain gauges
Reading data from intelligent sensors or external devices via MQTT

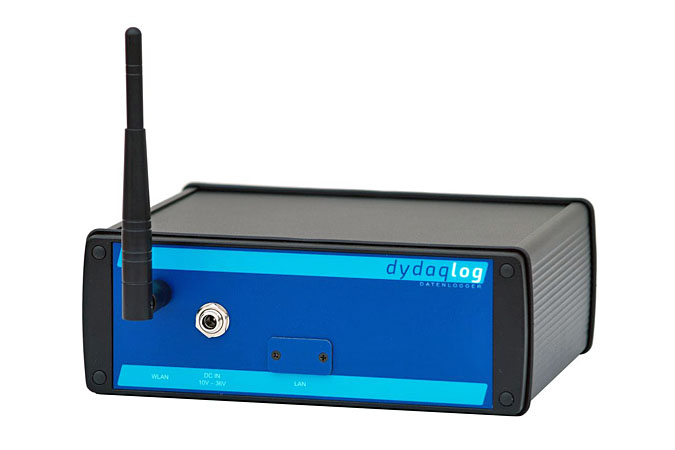

WLAN/LAN interface for configuration and data transfer
Powerful ARM® Quad Core processor with integrated web server

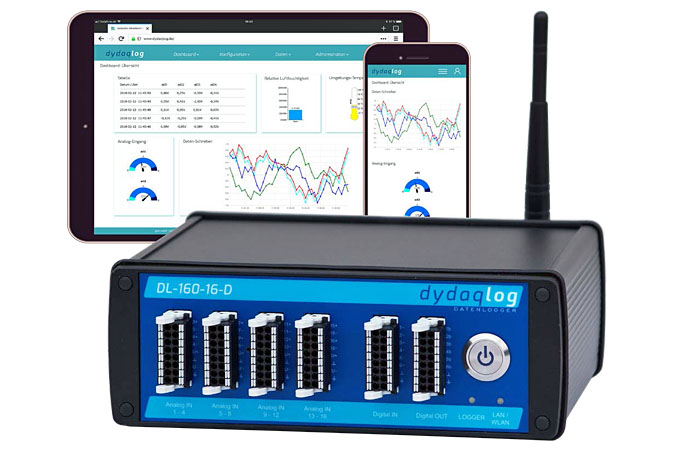

Convenient web interface for configuration and data display
Data storage in data clouds and automatic sending of emails
