Float level switch for side mount FF10 series

The FF10 series is a magnetic float level switch for side mounting. The FF10 series is suitable for application in the industrial and maritime sectors. Versions with a test function, top mounting or explosion-proof versions are available as standard.

• Floaters come in 3 diameters, namely Ø41, Ø50, Ø75
• Plastic materials PP & PVDF are suitable for corrosive environments.
• SUS304/316 materials, can be applied in high temperature or high pressure tank.
• Max pressure 50kg/cm2, specific density: 0.25~0.65
• Connection flange: square 92 x 92, JIS, DIN and ANSI specification.
• Mounting screw : 1-1/2, 2 PT, BSP and on customer's order.

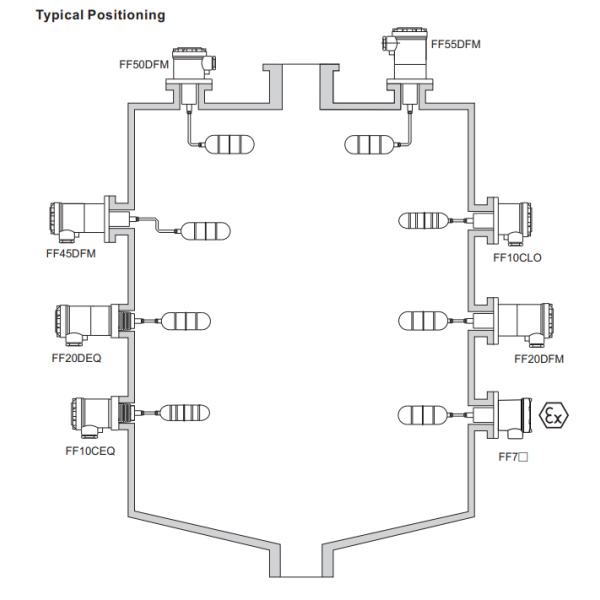

• Side mount, top mount are available.
• With ship approval & explosion-proof approval.
