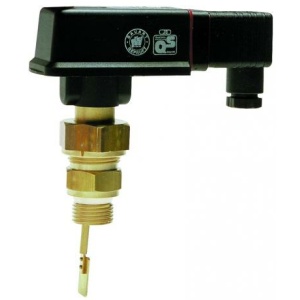

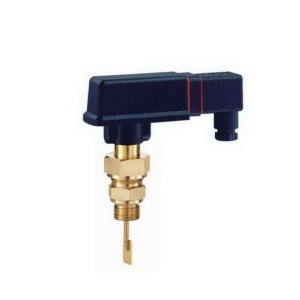

Flow switch with pipe T-piece type: VHS32M

Technical Specifications:

• Switching function:
  - Contact closes with increasing current
  - Contact opens on decreasing current
  - Return possible
• Pressure rating PN 25
• Medium temperature -25 ... 110 ° C
• Ambient temperature -25 ... 80 ° C
• Electrical connection Plug connector EN 175301-803-A incl. cable socket
• Current switching max. 1 A
• Voltage switching max. 230 VAC, 48 VDC
• Rating max. 26 VA, 20 W
• Degree of protection EN 60529 IP65

Applications:

• Heating HVAC
• Industrial refrigeration circuits
• Water Treatment
• Drinking Water Systems
