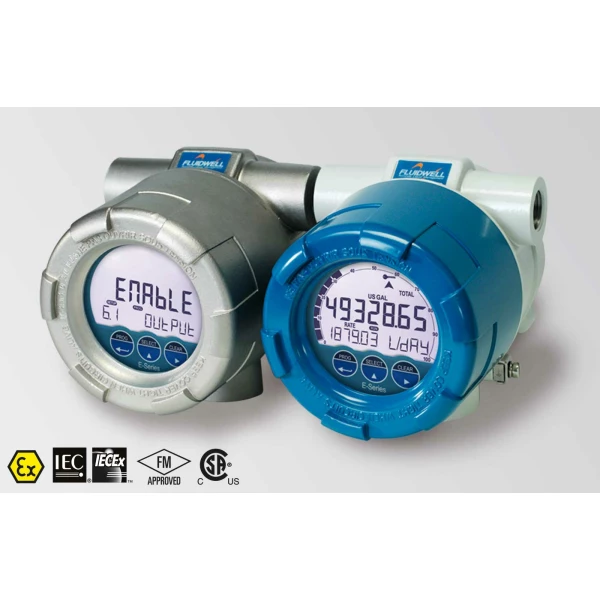

Fluidwell E Series - E112 Explosion proof - Flow rate Indicator / Totalizer

  • E112 Flow rate Indicator / Totalizer, with linearization, analog and pulse outputs
  • P - Primary input: Pulse e.g. coil, npn, pnp, namur, reed-switch
  • AH - Galvanically isolated, loop powered analog 4-20mA output
  • CX - No communication
  • HAA - Die cast aluminum Ex d enclosure with entry threads: 1 x 1 "NPT and 2 x 3/4 "NPT
  • IB - Remote control input to reset total or to lock the "clear total" button
  • OT - Passive transistor output(s).
  • PB - Internal power supply - long life time
  • PX - Basic power supply 9-27V DC
  • XD - Flameproof cf ATEX, IECEx, CSA, FM. I2GD Ex d IIC T6 Gb - Ex tb IIIC T85°C Db
  • ZB - Backlight ZX - No option selected
