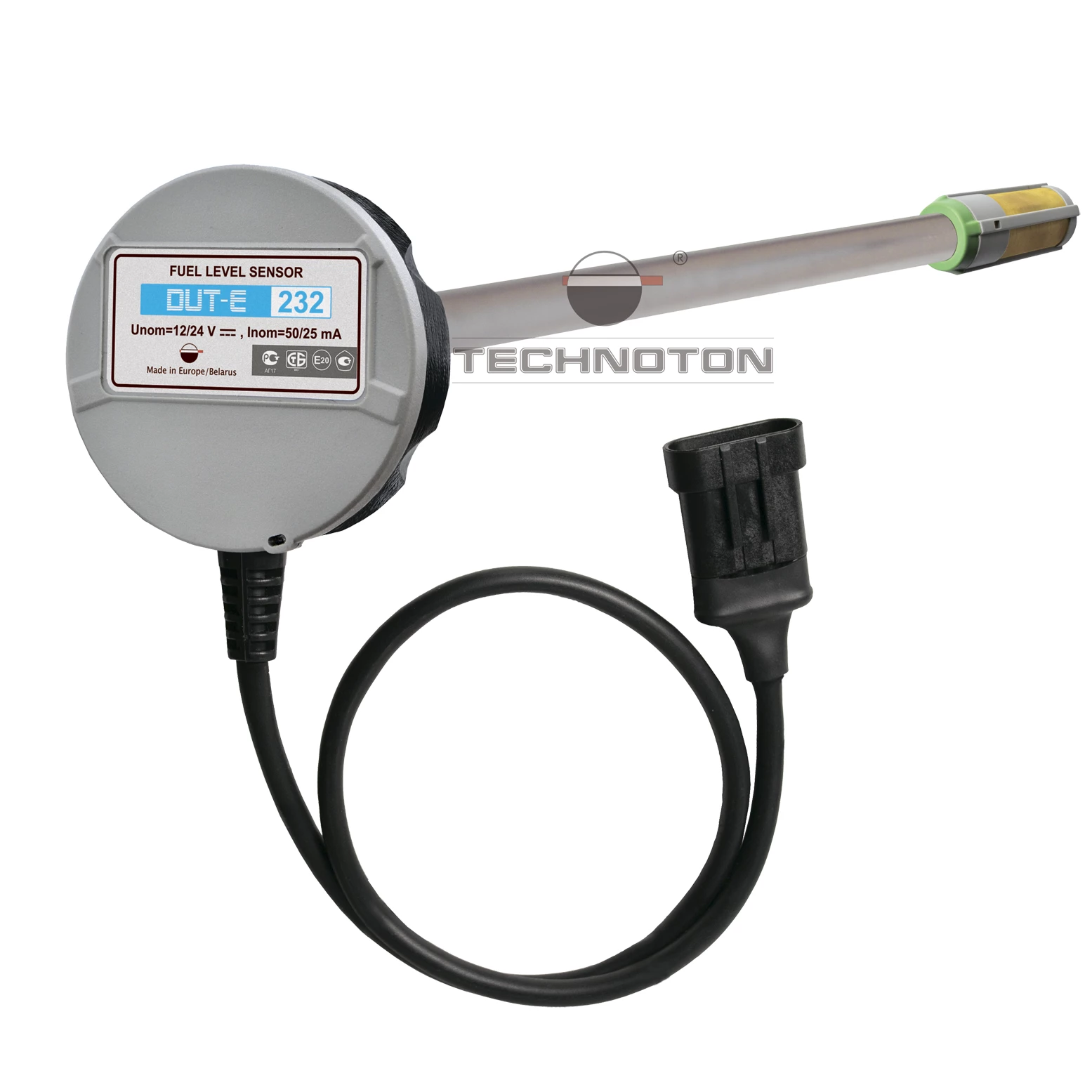

Fuel level sensor DUT-E with RS232 output

Brandstofniveausensor DUT-E met RS232 uitgang - Image 2

Brandstofniveausensor DUT-E met RS232 uitgang - Image 3

Fuel level sensor DUT-E with RS232 output

Control of tank refueling and draining of
Fuel theft prevention
Fuel consumption monitoring
Digital output RS232
Insertion length: 350, 700, 1000 mm

Tube length (mm)

Output

Product No.

Clear

DUT-E-232 fuel level sensors are used for accurate fuel level and volume measurements in tanks of vehicles and stationary units. DUT-E can be used to determine the current fuel volume and the change in volume (refueling or draining) of fuel in the tank.

DUT-E is used in GPS tracking and vehicle telematics systems as an additional fuel sensor or to replace the standard built-in (factory) fuel level sensor. When DUT-E-232is used as part of a telematics system, it can obtain reliable and accurate information about the current fuel volume in the tank and reveal misuse and fuel theft from the tank. DUT-E also provides a general overview of fuel consumption by vehicle or stationary unit.

We can manufacture sensors of any insertion length, up to 1000 mm (price + 10%), Maximum extension of measuring probe - 3000 mm, from 1000 mm on request.

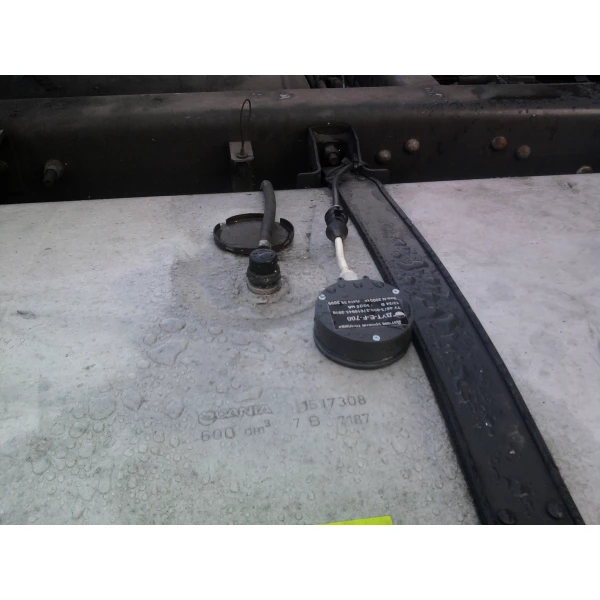

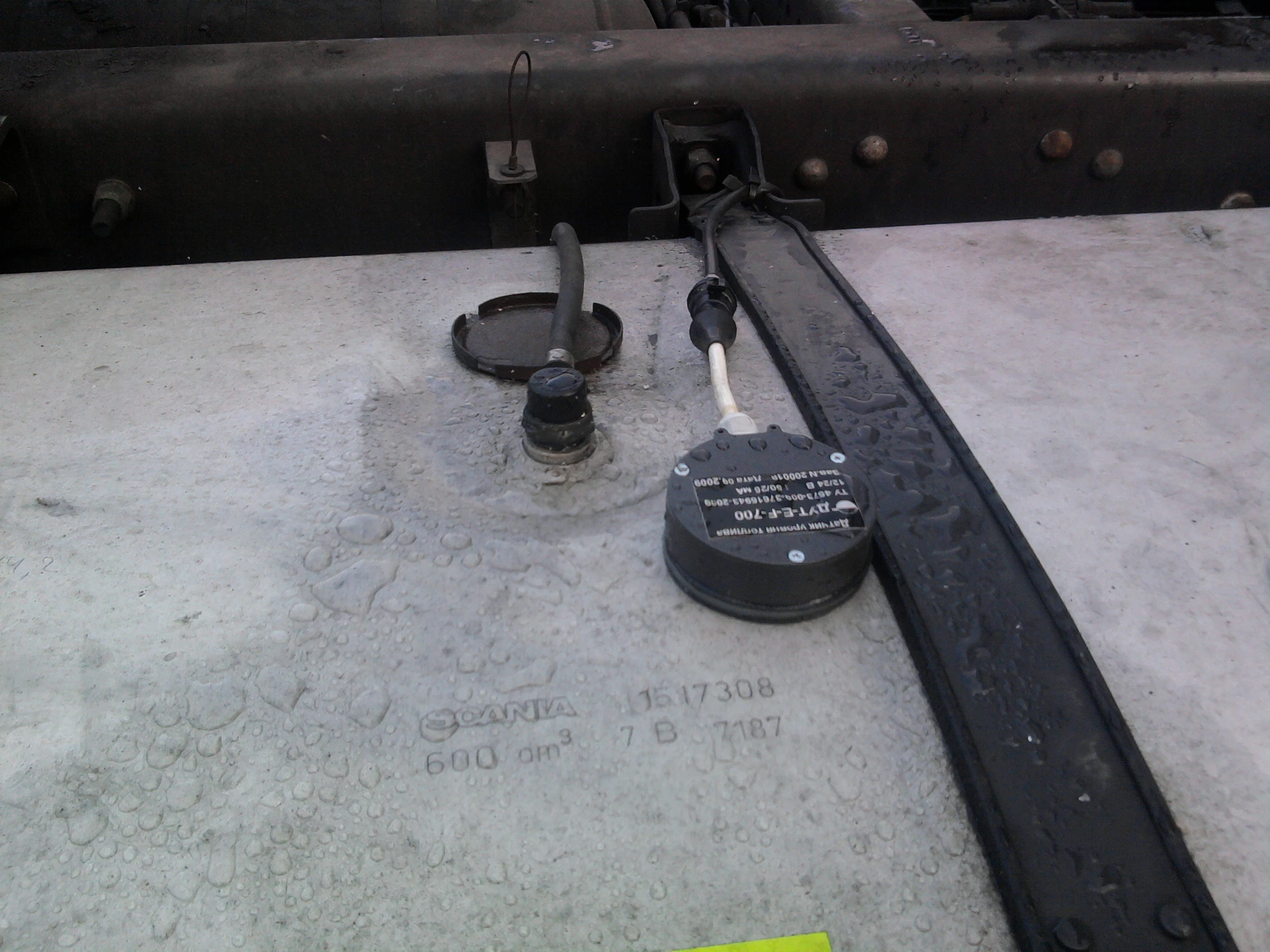

*Install the DUT-E in the geometric center of a fuel tank.

Accessories:

Mounting kit MK DUT-E
Service adapter S6 SK и S6 BT
Additional section DUT-E
Summator DUT-E SUM

Weight	1 kg
Tube length (mm)	1000, 350, 700, Other length
Output	1 - 9 V, 1.5 - 4.5 V, 2.5 - 9 V, CAN interface J1939/S6, DUT-E-485 special length, DUT-E-A10, RS232, RS485
Product No.	DUT-E-232, DUT-E-232 special length, DUT-E-485, DUT-E-AF, DUT-E-AF special length, DUT-E-CAN, DUT-E-CAN special length
