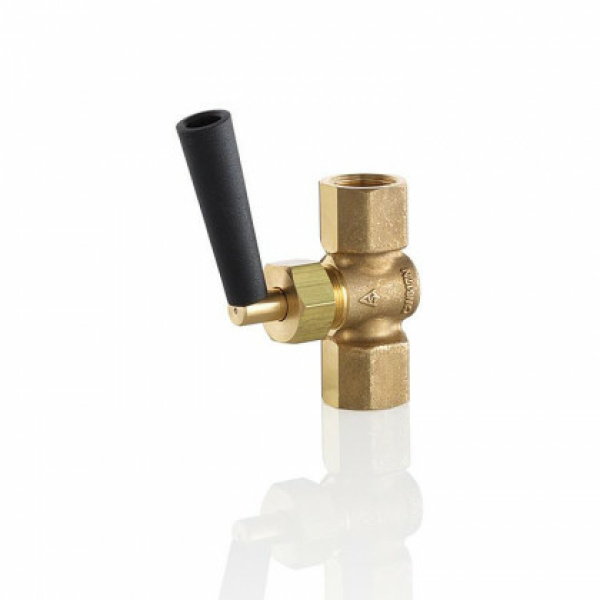

Gauge Cocks with Gland

AS-Schneider Gauge Cocks are basically designed, manufactured and tested according to DIN 16261, DIN 16262 and DIN 16263. According to above standards the cocks are applicable for a max. allowable (Working) Pressure (PS) of 6 - 16 bar (87 - 232 psi) and a max. allowable Temperature (TS) of 50°C (122°F) for liquids, gas or vapors. Originally the AS-Schneider Gauge Cocks were designed for a max. allowable (Working) Pressure (PS) of 25 bar (363 psi) for the G 1/2 models. We kept this pressure class for this kind of gauge cocks, see below Ordering Information.

The Gland types is a special design and not mentioned in above DIN standards.

Operating Positions are marked on top of the plug.
