H-Tronic LED display temperature switch TSM 125

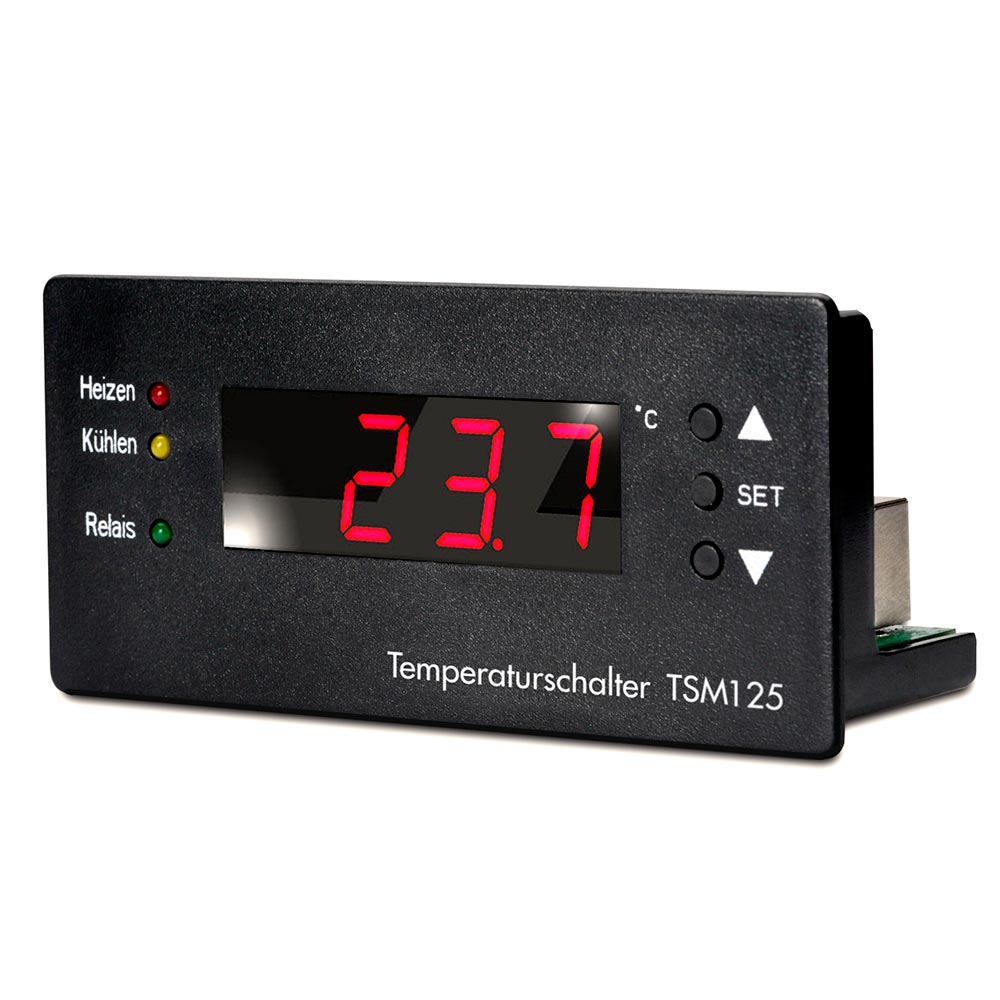

The new temperature switch installation module TSM 125 is ideally suited for all application areas in which temperature control is required in heating or cooling mode. The external, plug-in temperature sensor records measurement ranges from -55 to + 125 ° Celsius. The switching temperature is set in increments of 0.1 degrees. A 12.7 mm 7-segment display shows the switch-on, switch-off and current temperature. A red LED also signals "heating," a yellow "cooling," another lights up when the relay is on. The electronic thermostat is not only clear and user-friendly, but also safe to use. Sensor short circuit and sensor interruption are recognized immediately. The device can be used independently,
