The float switch S3 is compatible with the entire H-TRONIC WPS series. Due to its small size, the S3 can also be used in hard-to-reach areas and ensures trouble-free switching. The float switch S3 is equipped with an RJ45 plug. The float switch S3 is made of glass-fiber reinforced polypropylene and is suitable for monitoring liquid levels in non-aggressive media (e.g. Water). The switching process is triggered by the floating float and the integrated magnetic switch. Depending on the installation of the float switch, an NC or NO contact can be realized The S3 float switch is equipped with an RJ45 plug.

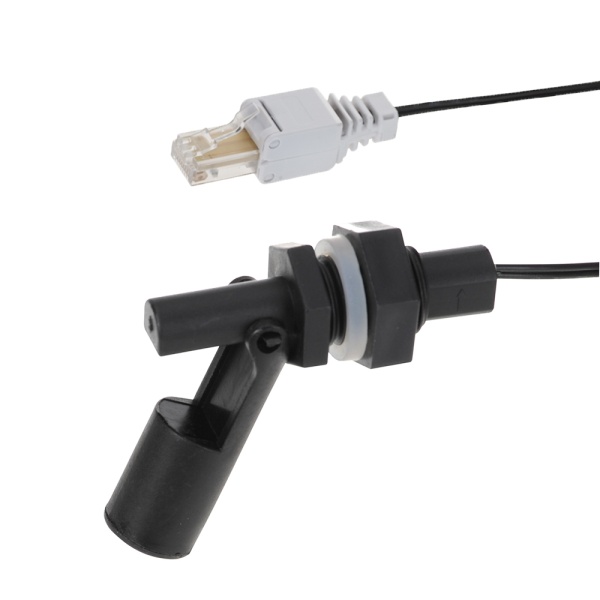

H-Tronic plastic float switch S3 with RJ45 plug
- Connection cable: 10m PVC strand
- Plug RJ45
- Contact: (opener or shutter)
- Temperature range: -10 to +60 ° C
- Max. Switching voltage: <25V AC / 0.4A; <60 V DC / 0.15 A
- Max. Switching power: 10 W
- Dimensions: 80 x 24 mm
