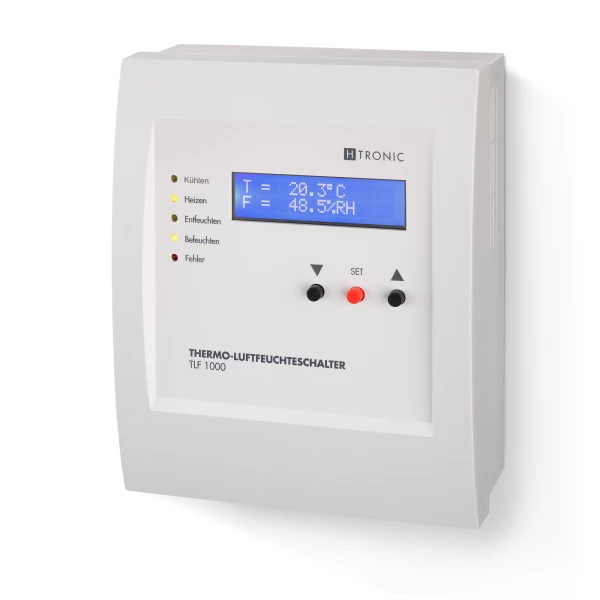

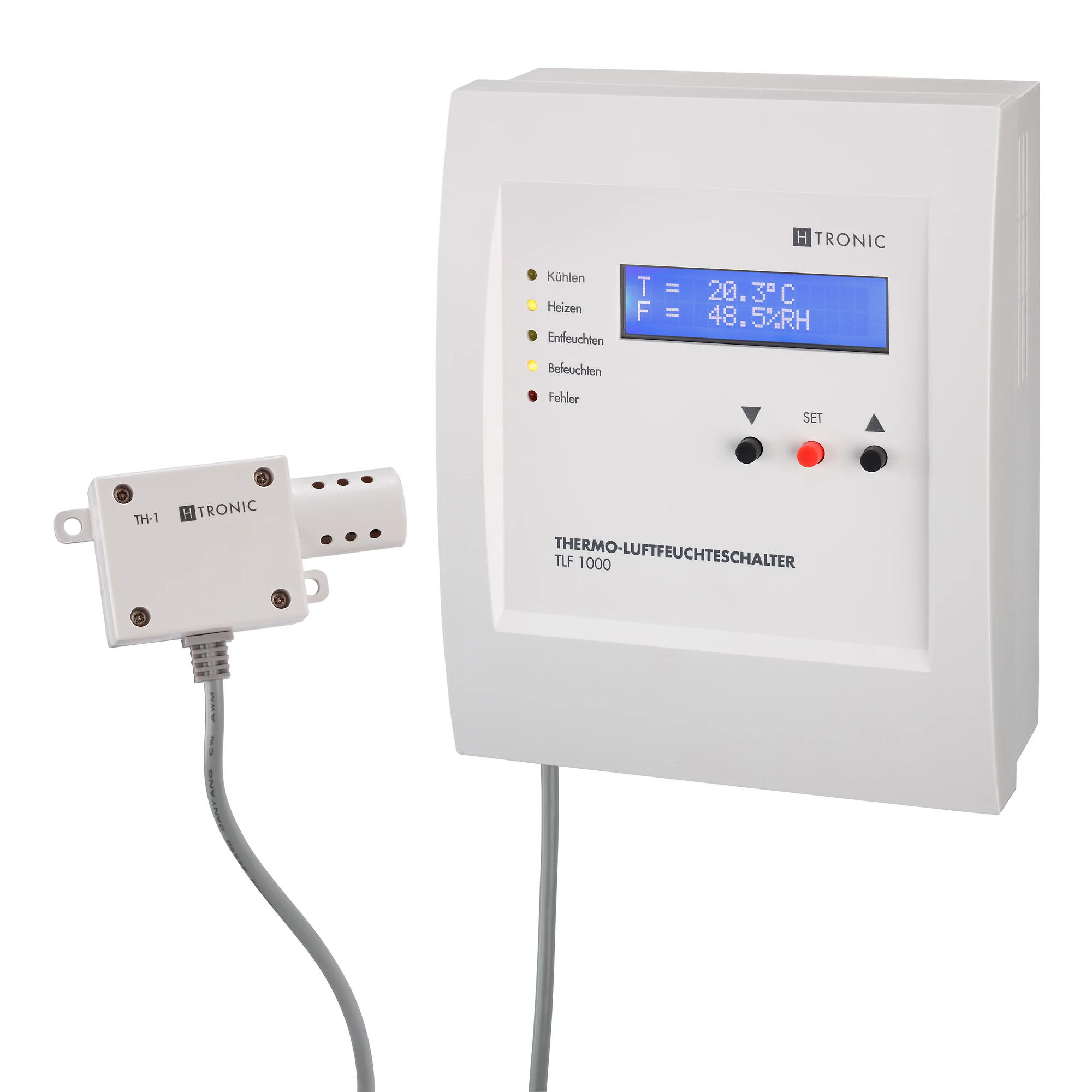

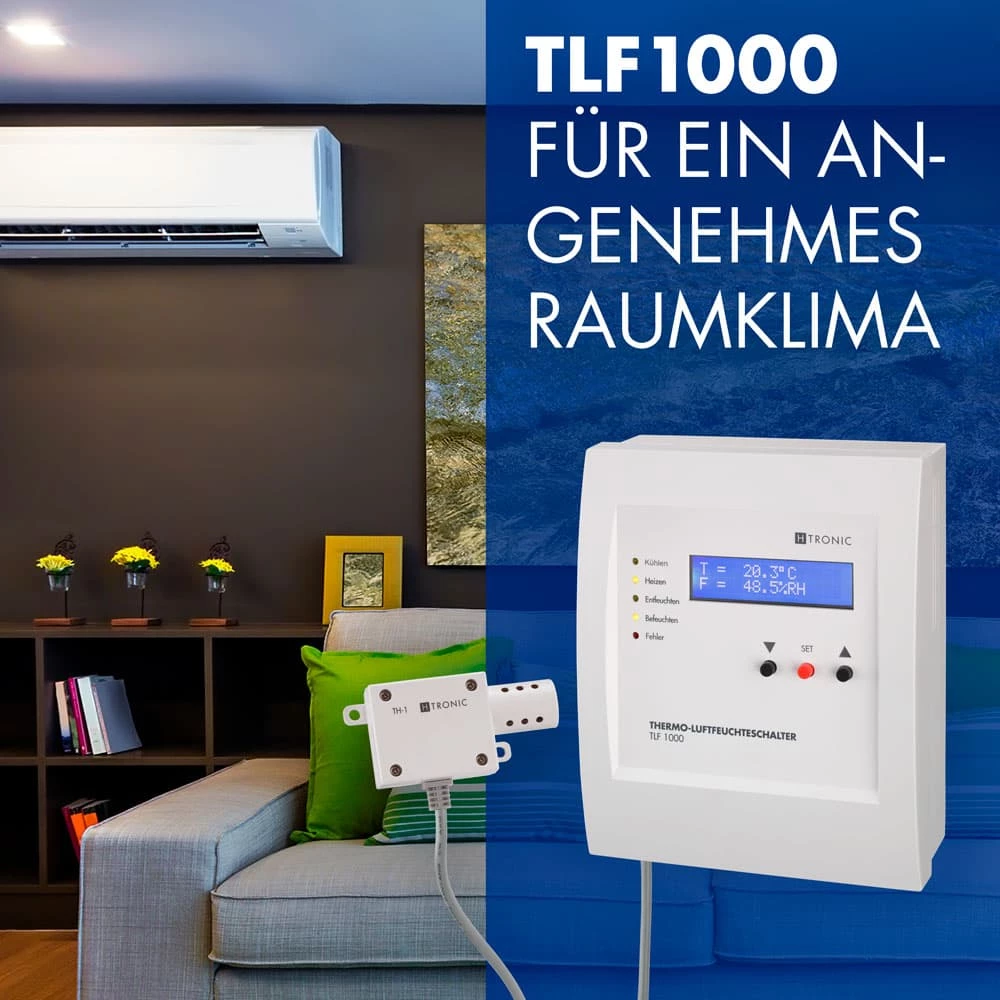

Want to intelligently control your fan heater, air conditioner or humidifier? Do you want your greenhouse heated or ventilated at the right time? The TLF1000 temperature/humidity switch is the ideal solution for this! The connected consumers are only switched on when the actual values for temperature and humidity deviate from the previously set target values. In this way, you ensure a pleasant indoor climate in which health fungus formation is avoided or a certain humidity is created in your greenhouse. The TLF1000 is operated with a temperature/humidity sensor. It is particularly suitable for temperature and ventilation control where the current indoor climate can be actively controlled (e.g. via heaters, ventilation dampers or humidifiers connected to the control) and independently of the current outdoor temperature and humidity.
Technical data:
- Operating voltage: 230 V / AC (50 Hz)
- Power consumption (standby): approx.1 W
- Output / max. switching capacity: 4 potential-free relays
- Max. Switching power (total) approx. 2700 VA
- Temperature measurement range: -25 ºC to +70 ºC
- Humidity measurement range: 0% RH to 100% RH

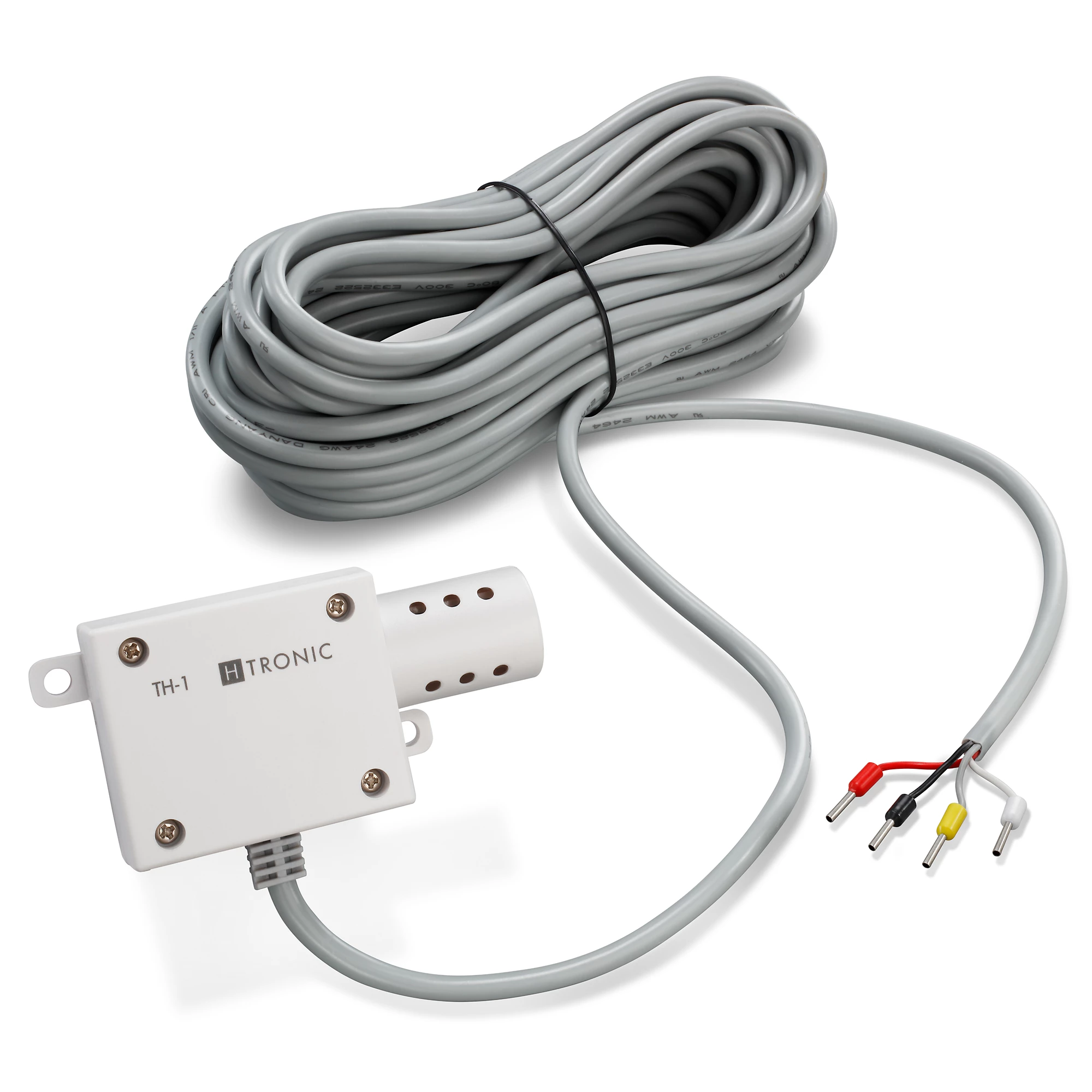

- Sensor: TH-1 sensor (included in delivery)
- Sensor cable: 10 m (extendable to 50 m)
- Dimensions (TLF1000): 170 x 140 x 68 mm
- Dimensions (TH-1 sensor): 76 x 36 x 21 mm
- Operating temperature: -10 ºC to +50 ºC
- Degree of protection (Control): IP20
- Protection class (sensors): IP64
