Name: Hikmicro FT31 | 384 x 288 pixels
SKU: HM-TF23-7QF-FT31
Availability: InStock

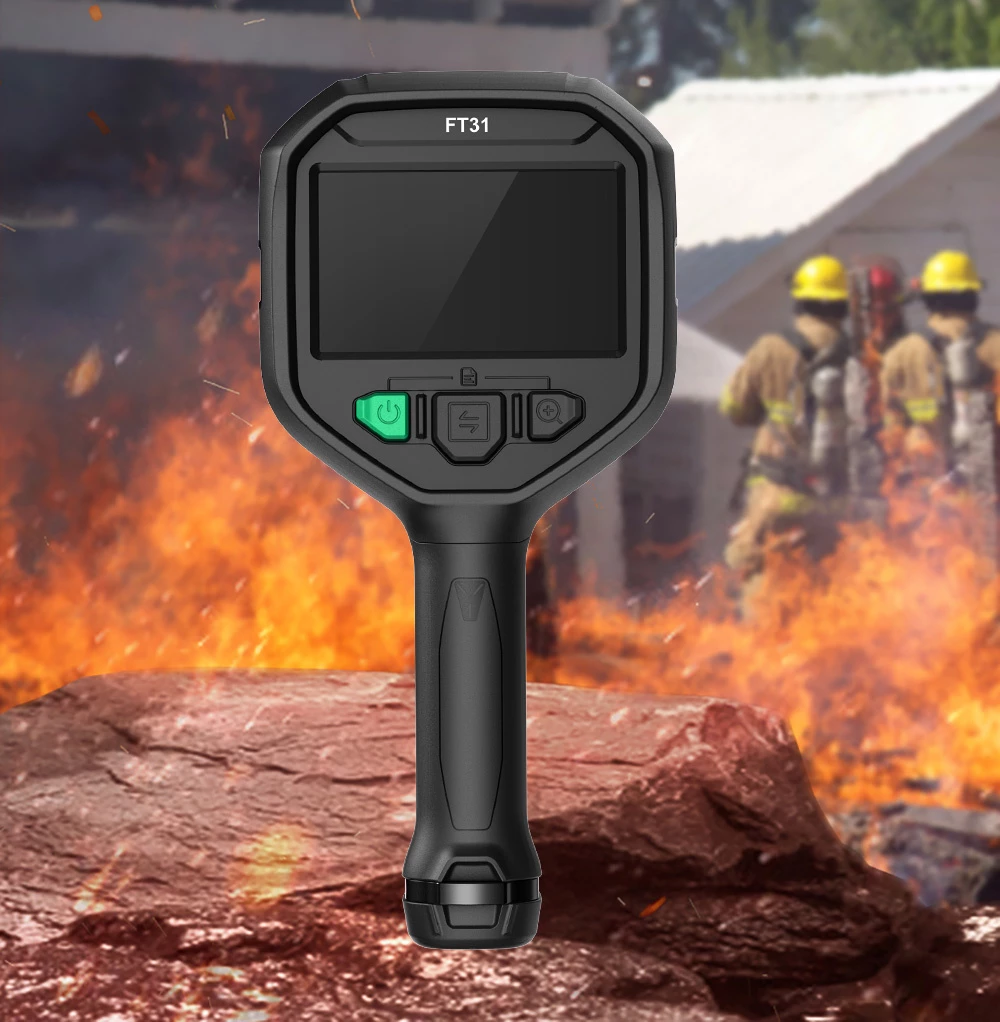

HIKMICRO FT31 thermal imaging camera 384 x 288 pixels

The Hikmicro FT31 is a very powerful thermal imaging camera designed specifically for firefighting. This camera allows observation in complete darkness and dense smoke.

Accessories

Thermal Camera FB31
Neck strap
Lanyard
Retractable lanyard
Interchangeable and rechargeable Li-ion batteries
Power supply for battery charger
Battery charger with two stations
Plugs for international use (US/EU/UK/AU) for power supply
USB 2.0 A to USB Type-C cable
Hard carrying case
Calibration Certificate
Quick Start Guide

IR resolution:	384 x 288 (110,592 pixels)
NETD:	< 35 mK (25°C)
Frame rate:	60 Hz
HDMI Interface:	–
Accurate:	Max (± 2°C ± 2%)
Display:
Field of view (FOV):	54.1°×40.2°
Temperature-range object:	-20°C to 1200°C
Visual camera:

Specifications

IR resolution	384 x 288 (110,592 pixels)
NETD	< 35 mK (25°C)
Image frequency	60 Hz
Detector distance	17 μm
Spectral range	7.5 to 14 μm
Focal length	7 mm
F-number	F1.6
Field of view (FOV).	54.1°×40.2°
Spatial resolution (IFOV).	2.42 mrad
Focus mode	Focusing free
Min. Focus distance	1 m (3.28 ft)
Display	Resolution 800 × 480, 4.3″ LCD screen
Digital zoom	1x, 2x, 4x
Image modes	Thermal
Color Palettes	Basic, Black-hot, White-hot, Fire detection, Rescue, Warm area, Cold area, Building
Temperature range object	-20°C to 1200°C
Accuracy	Max. (± 2°C/3.6°F, ± 2%), for ambient temperature -20°C to 50°C and object temperature above 0°C
Measuring Tools	Middle spot, hot spot, cold spot
Storage media	Built-in 32GB flash memory
Image storage capacity	Approx. 100,000 images
USB interface	USB Type-C
Battery type	Interchangeable and rechargeable Li-ion battery
Battery operating time	Approx. 6 hours
Battery charging time	Approximately 3 hours fully charged
Protection level	IP67, IEC 60529
Drop Test Height	2 m (6.56 ft), IEC 60068-2-31
Safety	IEC 61010-1
EMC	EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3
Vibrations	2 g IEC 60068-2-6
Shocks	25 g, IEC 60068-2-27
Working temperature range	-20°C to 50°C, 80°C = 40min / 150°C =15min / 260°C = 7min
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Relative humidity	< 95% non-condensing
Weight	Approx. 1022 g (2.25 lb)
Dimension	132.7×276.3×114.6 mm (5.2 × 10.9 × 4.5 in)
Tripod mount	UNC ¼"-20
EAN	6974004643690
