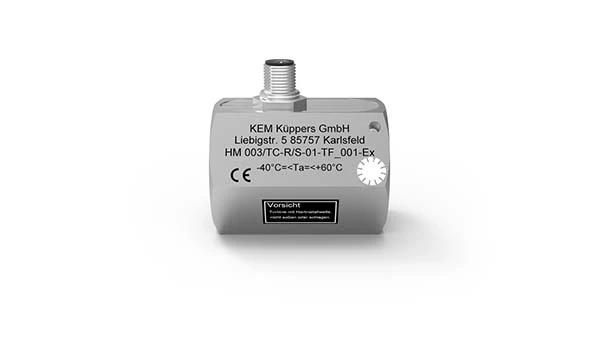

HM 005 TC-R - Turbine Flow Meters for Solvents with integrated sensor electronics.

HM 005 TC-R - Turbine Flow Meters for Solvents with integrated sensor electronics - Image 2

HM 005 TC-R - Turbine Flow Meters for Solvents with integrated sensor electronics - Image 3

HM 005 TC-R - Turbine Flow Meters for Solvents with integrated sensor electronics.

HM 005 TC-R - Turbine Flow Meters for Solvents with integrated sensor electronics - Image 2

HM 005 TC-R - Turbine Flow Meters for Solvents with integrated sensor electronics - Image 3

HM 005 TC-R - Turbine Flow Meters for Solvents with integrated sensor electronics.

The HM TC-R turbine flowmeter series (TC-R for BSPP ports and compact electronics) is used to measure continuous and discontinuous flow rates. Mainly used for non-lubricating media. Especially suitable for low-viscosity liquids such as water and solvents.

Description
Downloads

The HM TC-R turbine flowmeter series (TC-R for BSPP ports and compact electronics) is used to measure continuous and discontinuous flow rates. Mainly used for non-lubricating media. Especially suitable for low-viscosity liquids such as water and solvents.

Measuring Ranges0.8 up to 6 l/min

Repeatability±0.05 % (under the same conditions)

Linearity±1 % of actual flow (viscosity 1 mm²/s)

Viscosity Range0.6 up to 1 mm²/s

Materials

Housing: as per DIN 1.4305 [AISI 303].
Wheels: axle per DIN 1.4460 [AISI 329].
Bearing: Tungsten carbide sleeve bearing

Pressureup to 630 bar [9,317 psi]

Medium Temperature-40 °C up to +80 °C [-40 °F up to +176 °F].
