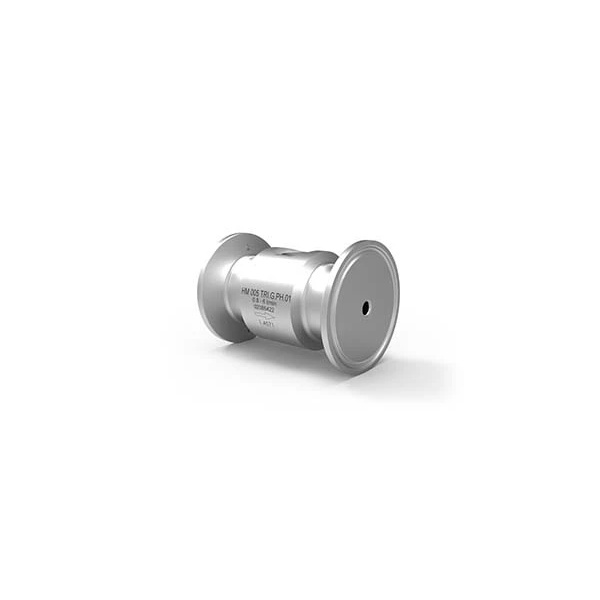

HM 022 TRI - Turbine Flow Meters for Pharmaceutical Applications.
HM 022 TRI - Turbine Flow Meters for Pharmaceutical Applications - Image 2
HM 022 TRI - Turbine Flow Meters for Pharmaceutical Applications - Image 3

HM 022 TRI - Turbine Flow Meters for Pharmaceutical Applications.

The HM TRI turbine flow meter series (TRI for Tri-Clamp connectors) is used to measure continuous and discontinuous flow rates. Used primarily in pharmaceuticals and the food industry. The innovative, dead space free construction and special flushing bores in the bearing make it very easy to flush.

The HM TRI turbine flow meter series (TRI for Tri-Clamp connectors) is used to measure continuous and discontinuous flow rates. Used primarily in pharmaceuticals and the food industry. The innovative, dead space free construction and special flushing bores in the bearing make it very easy to flush.

Measuring Ranges 20 up to 200 l/min

Repeatability ±0.05 % (under the same conditions)

Linearity ±1 % of actual flow (viscosity 1 mm²/s)

Viscosity Range 1 mm²/s

Materials

  • Housing: as per DIN 1.4404 [AISI 316 L]
  • Wheels: axle per DIN 1.4460 [AISI 329].
  • Bearing: PTFE

Pressure up to 10 bar [145 psi]

Medium Temperature -40 °C up to +150 °C [-40 °F up to +302 °F].
