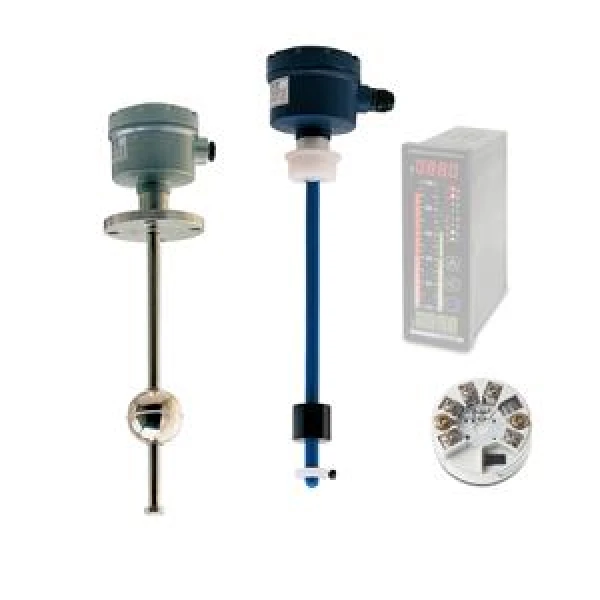

Magnetic Float Level Transmitter FGX

4-20mA output, 2-wire loop power supply or 3-wire resistance output
Resolution of 0.25 ″ (6.35 mm) or 0.5 ″ (12.7 mm)
Maximum length of 6 meters
Liquid level measurement with SG of> 0.45
Explosion-proof, corrosion-resistant and marine units available

FGX Magnetic Float Level Transmitter

The FG series is a magnetic float level transmitter consisting of a float and a tactile guide rod. The float is sized (volume and weight) based on the density of the liquid being measured. As the liquid in the vessel moves up and down, the float will rise and fall on the measuring rod. The magnetic float level transmitter has a resistance directly proportional to the float level, the liquid level.
