Mobeye water level detection WaterGuard CM4300

• Product name: Mobeye WaterGuard
• Product number: CM4300
• EAN: 8719324241557
• Size, weight: 94*94*28 mm, 205 grams
• Packaging: 182x157x56 mm, 364 grams
• HS number: 85176200
• Manufacturer's warranty: 24 months
• Mobeye No.: 10393

Description

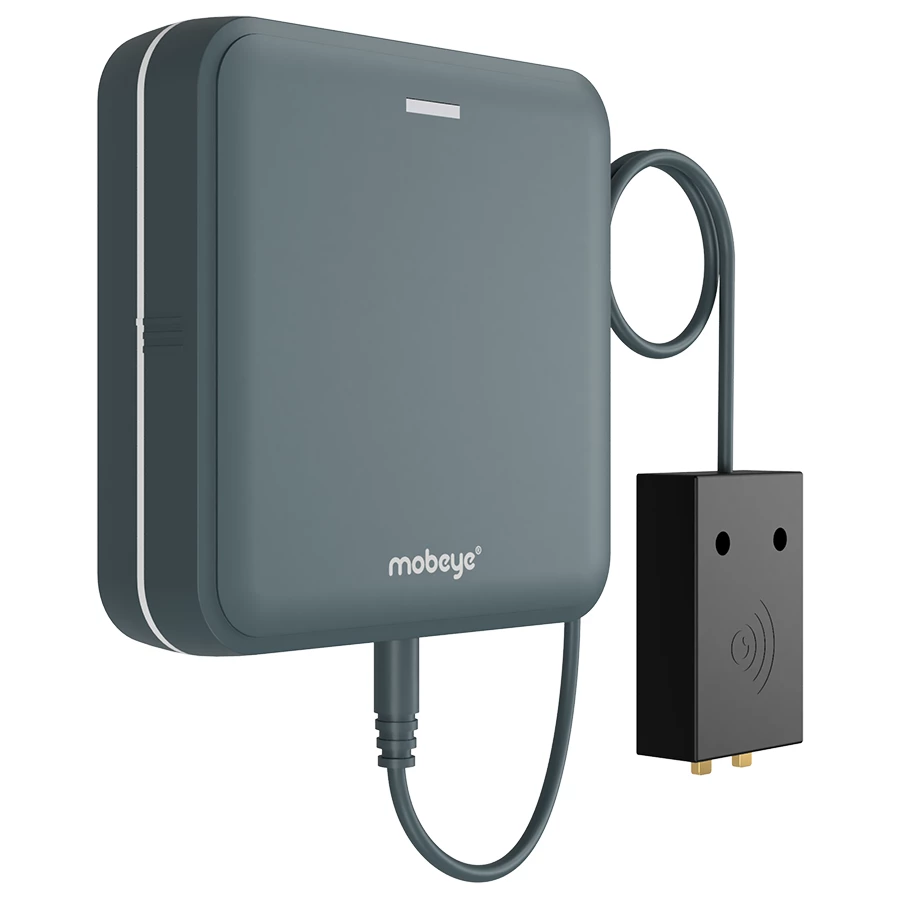

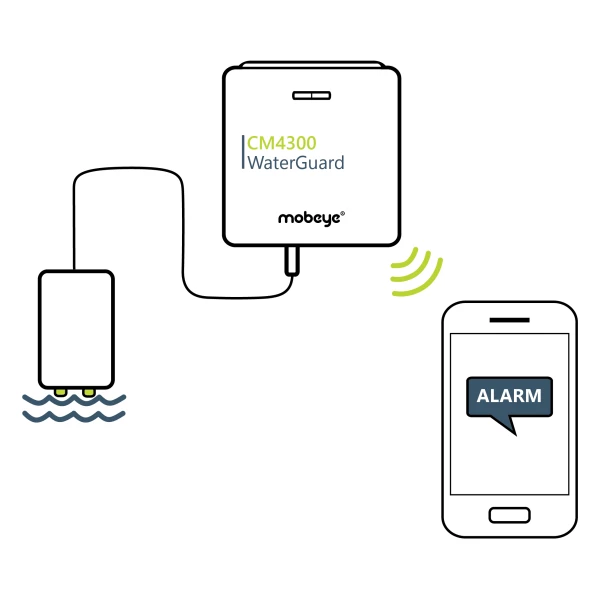

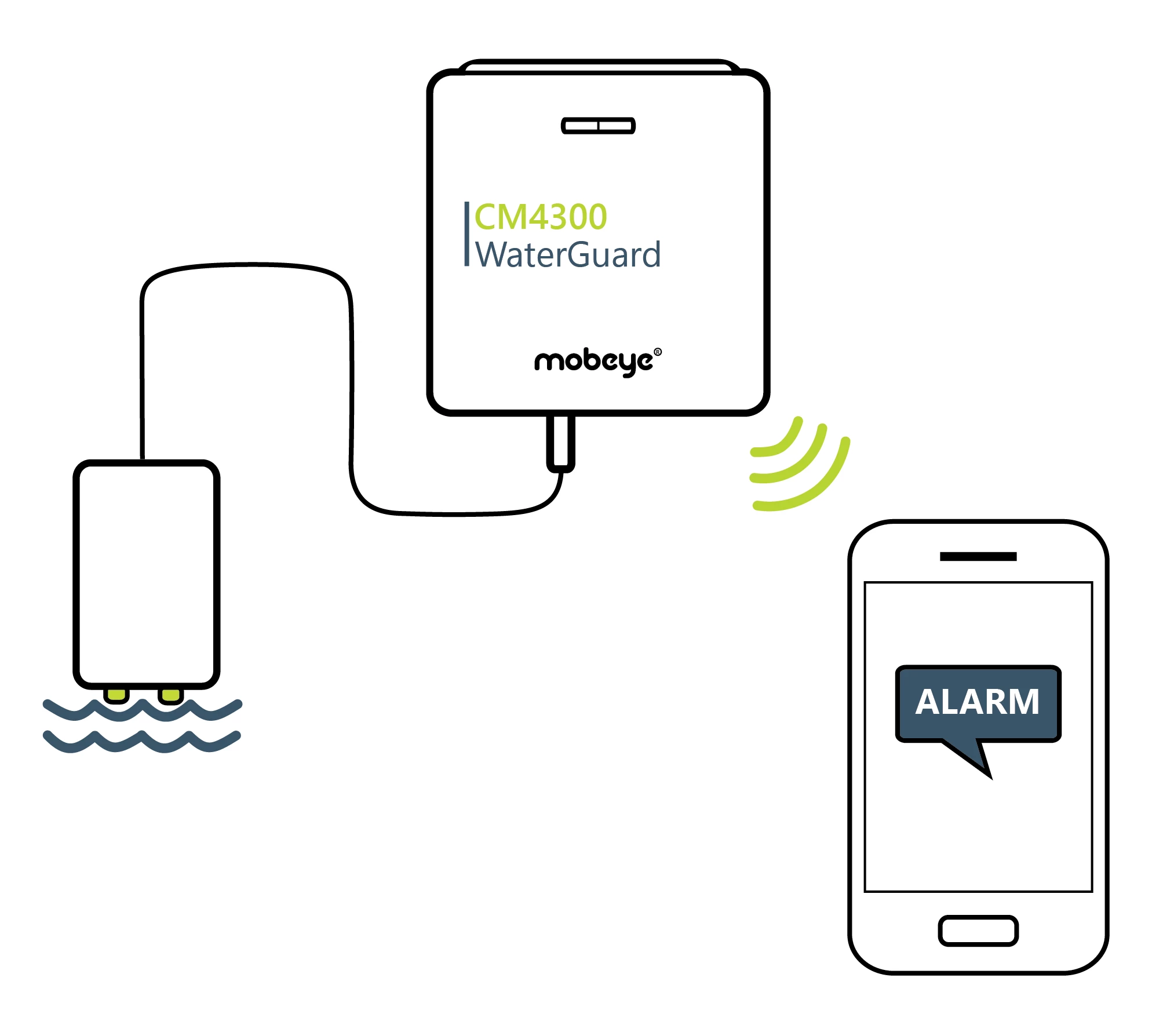

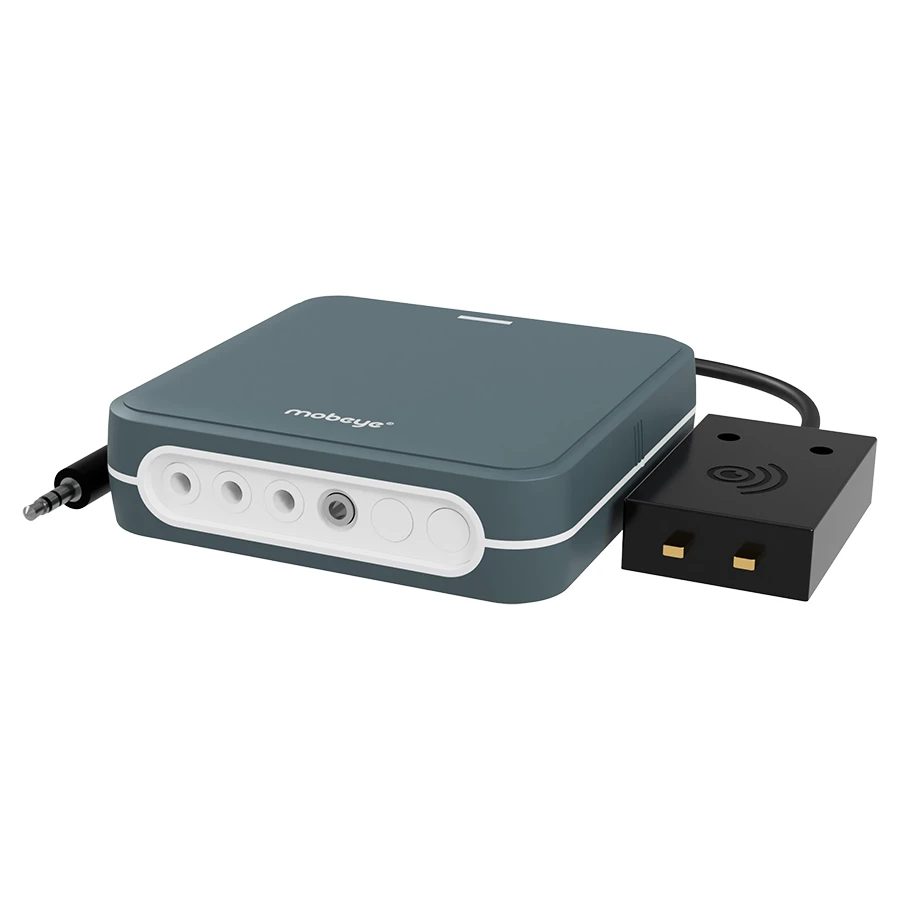

The Mobeye WaterGuard (CM4300) is a reliable water detector that informs set contacts via telephone in case of water leakage. As soon as the pins of the leak sensor sense a water-based liquid, a notification is sent via push message/sms/call/email. The device can operate for long periods of time on battery power. An external power supply (12-24V DC or adapter) can also be connected. The WaterGuard then also works as a power failure monitor.

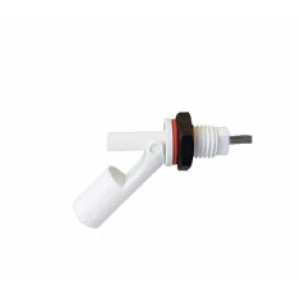

The Mobeye WaterGuard helps to prevent water damage by timely alarms. In addition to the water sensor, two NO/NC inputs can monitor additional sensors, such as a water float sensor or relay contact. Applications include monitoring water in water tanks, in basements, in drainage systems, for boats, archives, in commercial and industrial buildings, data centers, vacation homes, museums, art collections and warehouses.

A Mobeye (M2M) sim card is included for communication. This inexpensive "multi-provider" sim card provides the connection to the 4G LTE-M network (with 2G as fallback). The 4G LTE-M network is very reliable; has good coverage in buildings and remote locations and is energy efficient. The SIM card also gives access to the Mobeye Internet Portal and push-app for optimal ease of use, security and online programming. The Mobeye CM4300 sim card to be activated online costs 4,00 EUR per month (excl. VAT, flat fee).

Optionally, a proprietary (micro) SIM card can be used. The device then works (only) with 2G and without portal/app. Alarm notifications go via SMS and phone call to (max.) 5 phone numbers. Programming is done via (simple) SMS commands.

Technical data & highlights

• 1x water leak sensor (cable length: 1.5m)
• 2x NO/NC inputs (potential-free)
• Battery powered (2x CR123 included)
• 1x 12-24V DC input for connecting external voltage (with power failure monitoring)
• battery life: > 1 year (battery powered) or > 3 years (external power)
• 4G LTE-M/2G communication module

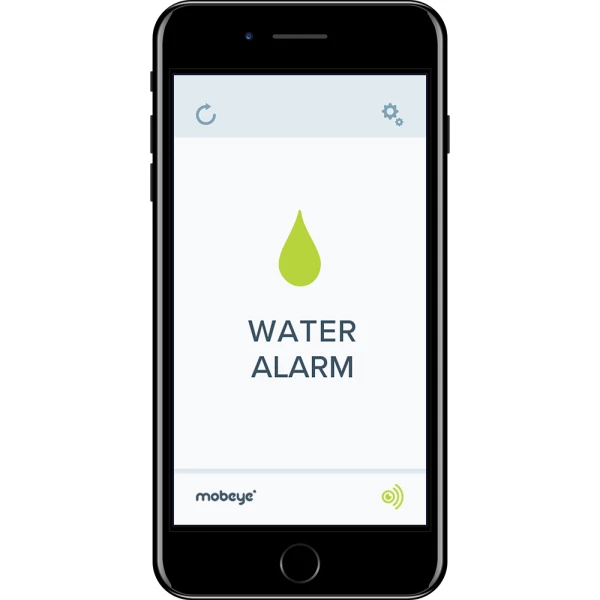

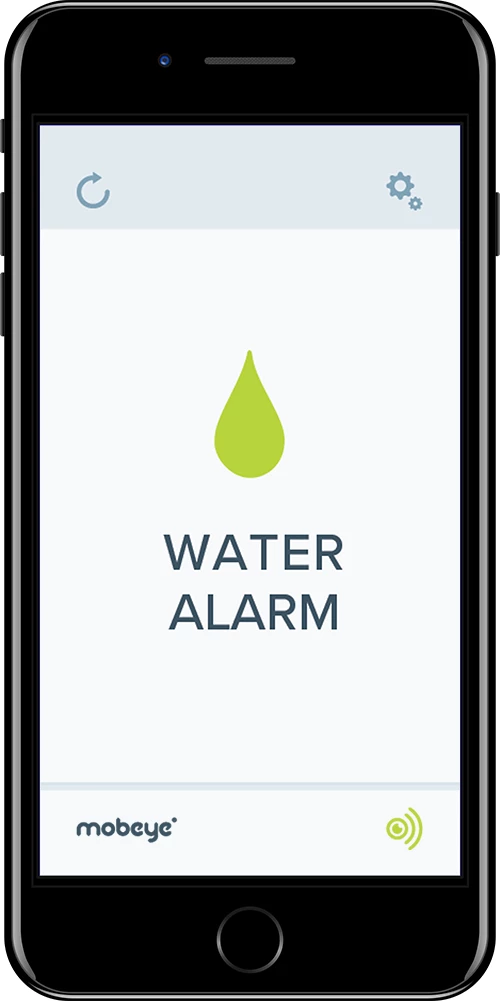

• Mobeye Internet Portal and push app give additional functions and security
• Alarm notifications via push message, call, text message, email and/or control room
• Alarm notification as a group message or sequentially (with interim confirmation and escalation plan)
• Alarm on water alarm (and alarm recovery)
• Alarm on activated input (and possible alarm recovery)
• Power failure alarm (and recovery notification)
• Low battery warning
• Warning if "keep-alive" test notification fails (without portal: test notification via SMS)
• Developed and produced in the Netherlands

Content

• Mobeye CM4300
• 1x water sensor
• 2x CR123 batteries
• Mobeye sim card (optional to use)

Accessories (not included)

• Mobeye power adapter 10027 (500mA, 12V DC)
• Extension cable AC-EC1 (3m) or AC-EC3 (10m)
