Technical Characteristics
- Min. purchase 10 pieces per type

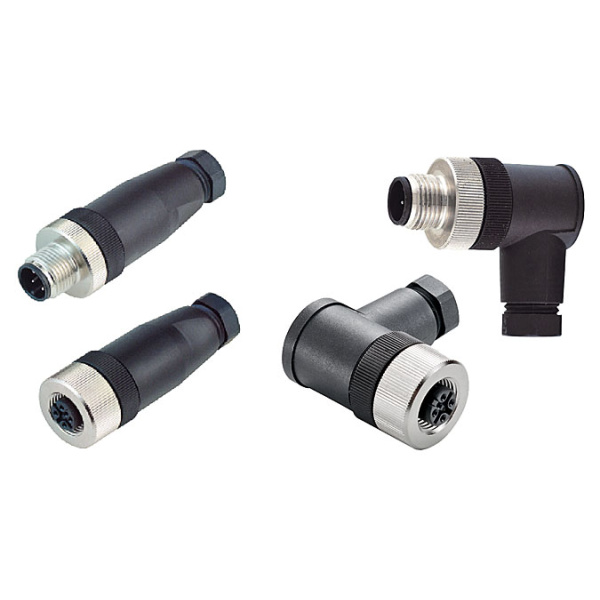

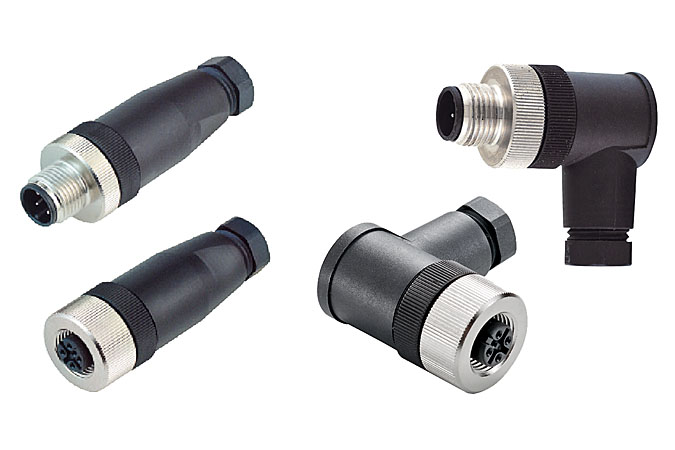

- Connector M12 with screw connection
- A-coded
- Male straight | Male right angle
- Female straight | Female right angle
- PG7 in 4-pole / 5-pole
- PG9 in 4-pole / 5-pole / 8-pole
- Main housing material: PA, black
- Cable diameter: 4... 6 mm (PG7) / 6... 8 mm (PG9)
- Wire cross section, min / max .: 0.14... 0.75 mm².
- Rated current: 4 A
- Rated voltage: 250 V.
- Protection rating: IP 67
- Contact Surface: CuSnZn
- Housing temperature range: -25... + 85 ° C
