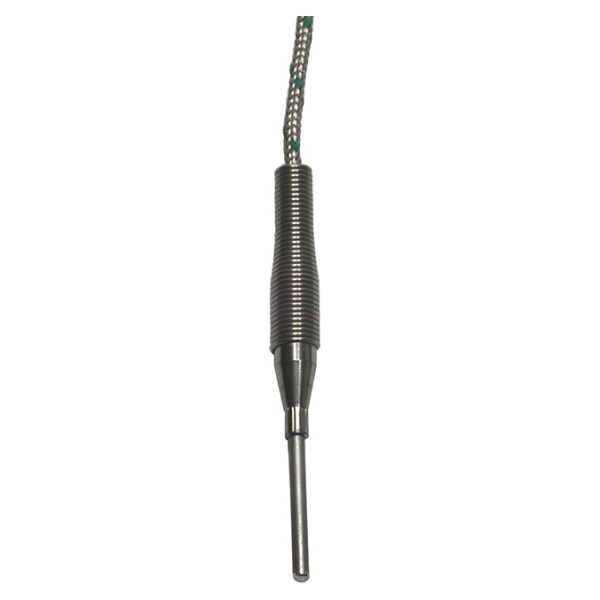

Müller Mineral insulated thermocouple with GL approval

technical features

• Sensor RTD: 1x PT100 / 1x Pt1000 / 2x Pt100 / 2x Pt1000 (2-, 3-, 4-wire)
• Accuracy: class A / class B / B1/2DIN / B1/3DIN / B1/10DIN
• Protective sheathing: stainless steel 1.4401
• Sleeve joint: stainless steel.4571 (316Ti)
• Diameter sheath: 1.5 / 3 / 4.5 / 6 mm
• Nominal length: 100 mm / Option: other length
• Cable length: 2000 mm / Option: other length
• Cable: PVC-PVC / PTFE-silicone / PTFE-PTFE / PTFE-braiding-PTFE, Fibreglass-Fibreglass-stainless steel braiding
• Connection: open ends
