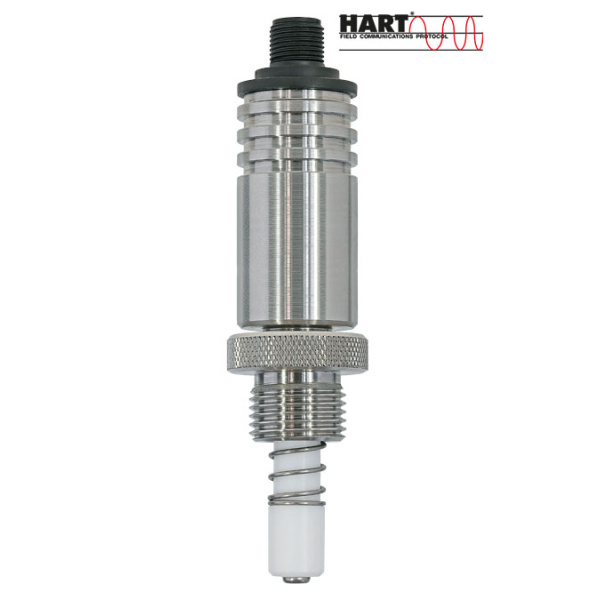

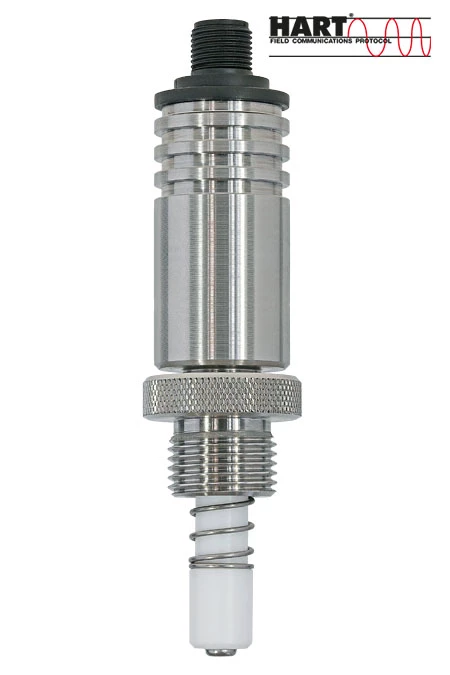

Müller Modular temperature sensor with spring HART MK

Output

Process Connection

Electrical connection

Range (°C)

Tube length (mm)

Clear

technical features

Sensor: RTD Pt 100, Pt 1000, 2-, 3-, 4-wire
Protection: Inside completely potted
Material:Protecting tube and body stainless steel 1.4571
Process connection: 3/8″, 1/2″, 3/4″
Option: transmitter 4...20 mA HART
Settings: configurable with software
Connection: MIL, valve, M12x1, cable, Super Seal, Deutsch, Bayonet
Protection: at least IP 65

Weight	N/A
Brand	Müller IE
Output	Pt100 3-wire, 4 ... 20 mA HART, Pt100 2-wire
Process Connection	G1/2", G3/4", G3/8"
Electrical connection	M12x1, 4-pole, M12x1, 5-pole, Cable 2 mtr. PUR
Range (°C)	0 ... 100, Other range, -40 ... 125, 0 ... 200, 0 ... 50
Tube length (mm)	65, 45, Other length
