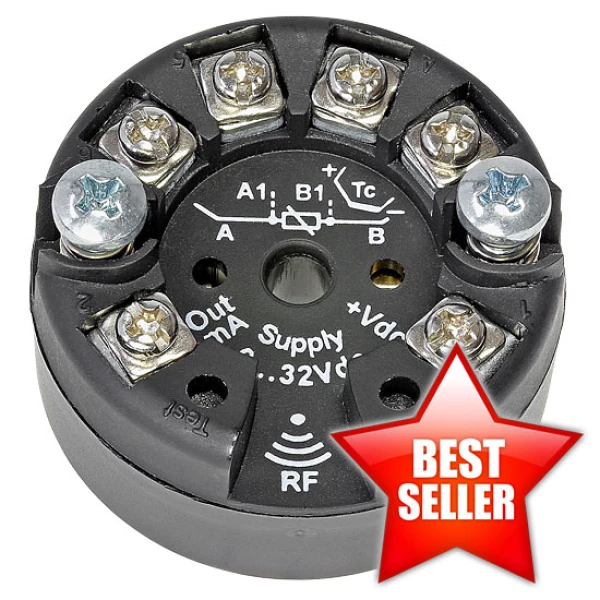

Müller RFID programmable transducer for Pt100 and thermocouple

Entrance

Range (°C)

Output

Clear

Technical characteristics:

Input: Pt100 or thermocouple
Output: 4 ... 20 mA current loop (2-wire)
freely programmable parameters
LabSoftView installation program for Windows
Max. Transfer error between 0.1% of Final Value or 0.2°C
Protection rating IP 20 (IP 54/66 when using a DIN-B terminal head)
for use in terminal head form B

Option: RFID configurator, cables, software

Weight	1 kg
Entrance	PT100 3-wire, Thermoelement type: K
Brand	Müller IE
Range (°C)	0 ... 150, Other range, 0 ... 1200
Output	4 ... 20 mA

Product Documents

Datasheet
