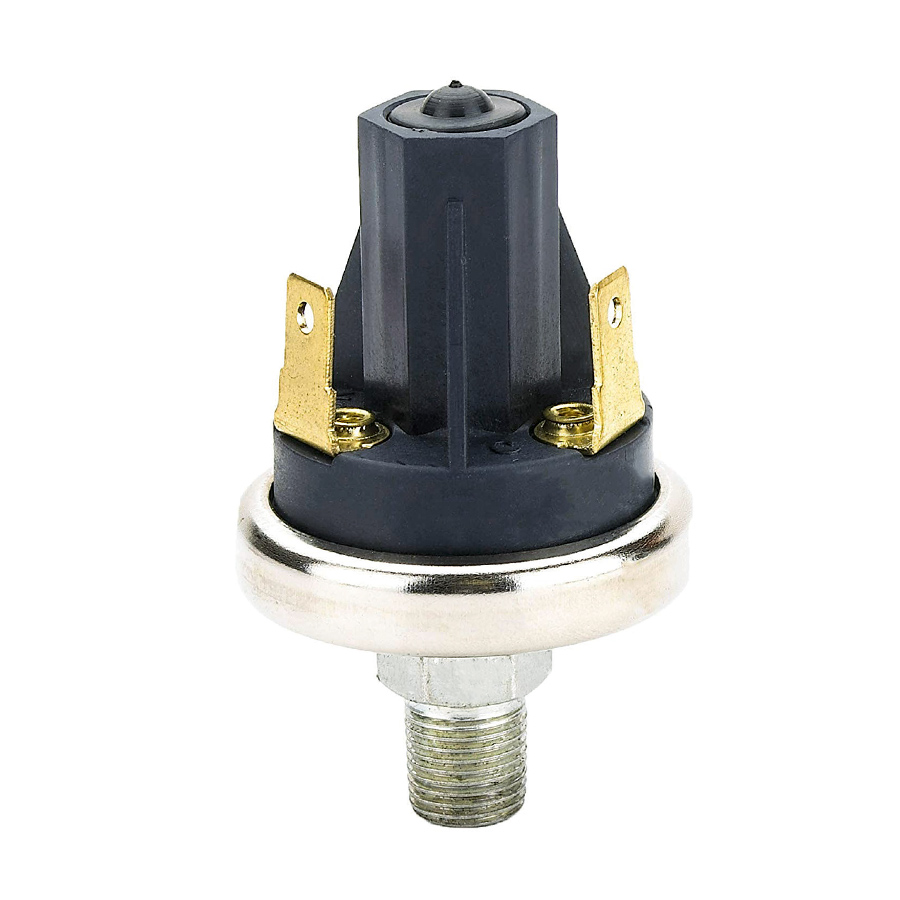

PHC – Adjustable pressure controllers for low pressure

Switch rating	4 A / 24 Vdc – 8 A / 12 Vdc – 15 A / 6 Vdc
Electrical connection	Faston 6.3 x 0.8
Adjustment range	35 – 70 mbar – 70 – 200 mbar -200 – 480 mbar – 480 – 900 mbar – 900 – 1600 mbar – 1600 – 3400 mbar – 3400 – 6200 mbar
Max. static pressure	30 bar
Hysteresis	Fixed
Temperature tange	-20 °C +120 °C (according to diaphragm/seal material)
Contact	NO – NC – SPDT
Body material	Brass – AISI 316
Diaphragm/ Seal material	Teflon – EPDM
Threads	G1/8 BSPT – G1/4 BSPT – G1/8 BSPP – G1/4 BSPP – 1/4 NPT – 1/8 NPT
Protection	IP00 with fast on – IP54 with CAP 30 and CAP 31
Mechanical life	10⁶ operations
Dimensions	Max. high 63 mm
Certification	CE – UR
Options	Set-point rising and falling – Execution with fast-on – Execution with screw terminals
