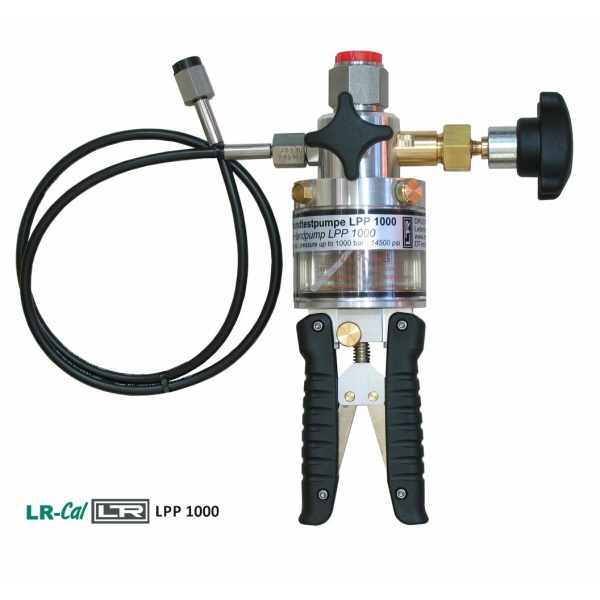

The pressure test pump LPP1000 for checking, adjusting and calibrating mechanical and electronic pressure measuring instruments by means of comparative measurements. Despite its compact size, the pressure test pump LPP1000 is easy to operate and precisely allows the generation of the required test pressures; a changeover switch also allows the generation of vacuum. The LPP1000 is equipped with a fine control valve for high pressure generation and precise adjustment of pressures. The reference instrument is screwed directly to the top of the pump and the unit to be tested is connected by means of the connection hose with an adapter 1/4" BSP female thread (free turning), which is included in the delivery.
LR-Cal LPP 1000 Specification:
Pressure generation: | 0 to 1,000 bar = 0 to 14,500 psi |
Pressure ports (standard version): |
For reference instrument (on the top of the pump): 1/2″ BSP female (freely rotating), with integr. O-ring For test item (at the test hose): 1/4″ BSP female (freely rotating), with integr. O-ring |
Materials: | Aluminum, brass, ABS, Plexiglass, NBR |
Priming pressure: | Hand liver |
High pressure: | Switch-over knob, reduced lever stroke |
Pressure fine adjustment: | Fine volume adjuster (with large volume) |
Operating media: | Mineral oil based hydraulic fluid or distilled water, like used for flat irons (e.g. from local super market) |
Fluid reservoir: | Volume > 200 cm³, can be filled during stroking |
Dimensions: | approx. 270 x 160 x 120 mm (without test hose) |
Weight: | approx. 1.3 kg (without test hose) |
Order Code: | LPP-1000 |
Incl. accessories:
LPP-H-KOFFER: | Transit case with foams for pressure test pump, sets of adapters and 1 reference instrument max. DS 100 resp. 85×85 mm |
LPP ADAPTER BSP: | Set of stainless steel BSP adapters with integr. O-rings: 1/8″ BSP, 3/8″ BSP, 1/2″ BSP female + 1/2″ BSP male |
LPP-ADAPTER-NPT: | Set of stainless steel NPT adapters 1/8″ NPT, 1/4″ NPT, 3/8″ NPT and 1/2″ NPT male |
