Pt100 insertion temperature sensor with GL approval type: WT-K1G

Description
Downloads

KW4110251001-060

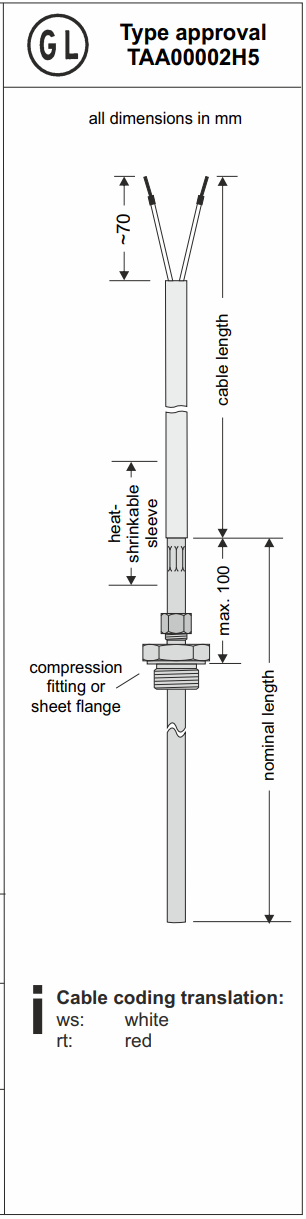

Cable resistance thermometer with GL approval
Certificate No.: TAA00002H5
Measuring element: Pt100 3-L
Accuracy: class B
Nominal length: 60 mm
Diameter: 6 mm
Material: 1.4571
Connection: 2 mtr. connection cable 3×0.22 mm² (Teflon / silicone).
Stripped single wires 70 mm and fitted with ferrules.
Cable protection: kink-resistant spring
Labeling: nameplate, transparent
Shrink tubing 100 mm on (sensor side)
Code: 100-01369
