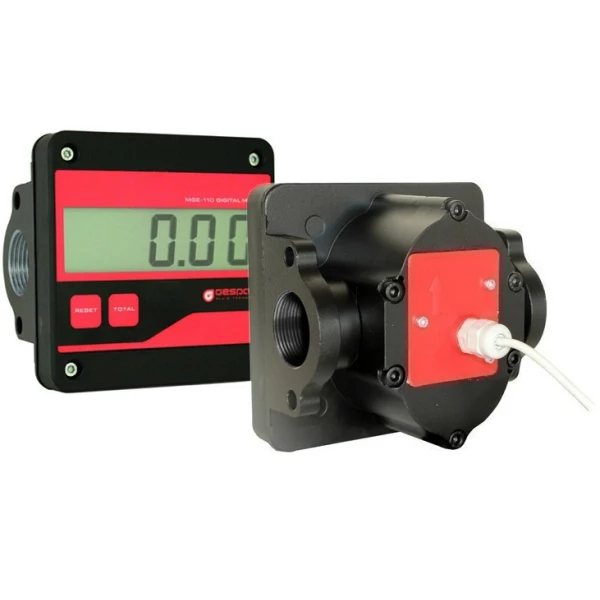

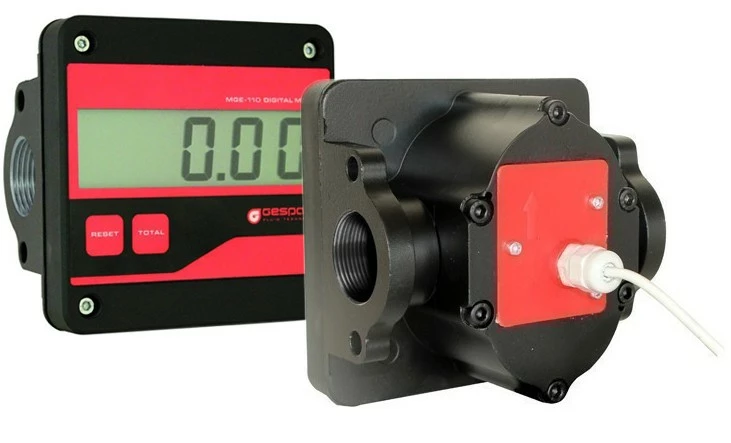

Puls flowmeter voor diesel, smeermiddelen,, biodiesel | MGE/I-110 · METER + PULSER 5-110 l/min. met LCD-display

Technical data:

• Flow (approx.):
  • 5-110 l/min (diesel)
  • 5-80 l/min (lubricant)
• Viscosity: 2-2000 cSt
• Accuracy: ±0.5 %
• Max. pressure loss: 0.3 bar (diesel)
• Max. pressure: 55 bar
• Min./max. temperature with Reeds: -10 ºC / +90 ºC
• Min./max. temperature with Hall Effect: -10 ºC / +50 ºC
• Maximum Humidity: 95 H.R.
• Noise level: LeqA < 70 dBA
• Two channels: 41 pulses per litre and channel
• Connection through thread or flange: F1″ BSP. Direct connection to the GESPASA pumps. Optional: flanges with thread of 1″
