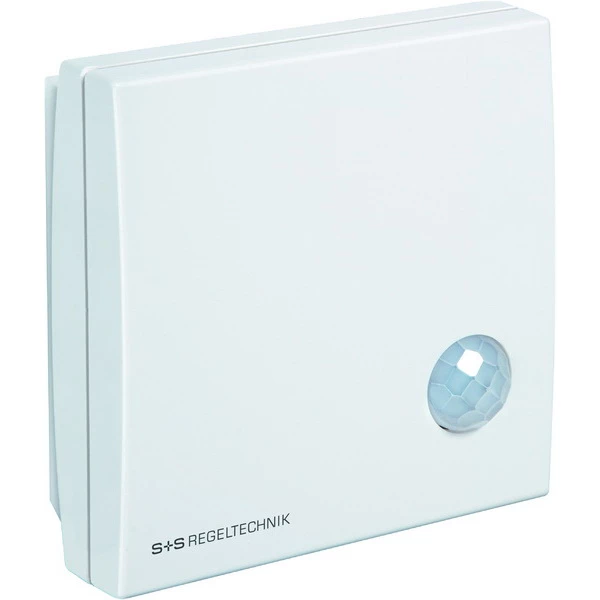

The motion sensor / presence detector KINASGARD~ RBWF registers the presence of persons and movements and has as output a switching contact. The sensor has a measurement angle of 110° and a circumferential 360°. The patented lens system with 20 separate lenses in ~~n creates many small measuring surfaces that even at a distance of 10 meters still measure small movements with great accuracy. The sensor is supplied in a design housing made of plastic with clamp cover and a base with 4 mounting holes for installation on a flush-mounting box. An expansion port for cable entry is provided. The room motion sensor serves for monitoring, recognizing states and motion-dependent control of room functions, e.g. for temperature reduction of unused rooms. The sensor is used at workstations, in warehouses, corridors, in offices, living and business areas and conference rooms.
