RTM-CO2-SD-U 2×0-10V 0...2000ppm, 0...50°C, Room CO2 / temperature sensor, BALDUR II Neutral

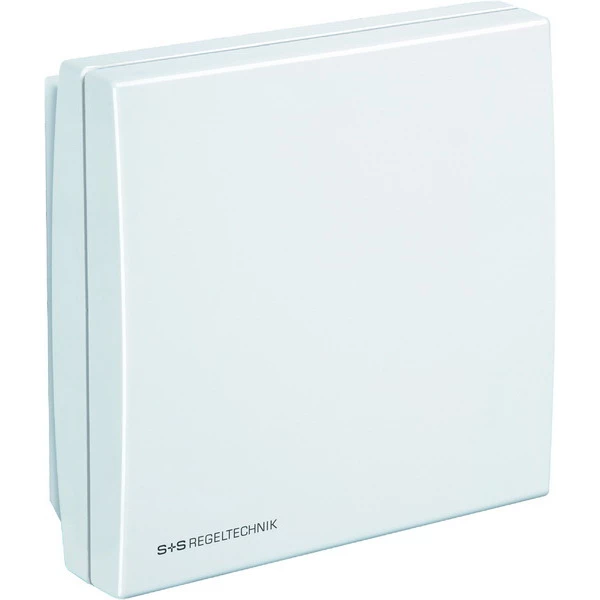

The maintenance-free microprocessor-controlled AERASGARD~ RTM-CO2-SD serves to measure the CO2 content and temperature~of the air in the range of 0°2000ppm CO2 and 0...50°C. The measurement signal of the CO2 transmitter and temperature sensor are converted into a 0-10V signal. Optionally, it can be equipped with a display or switching output. It is supplied in a design housing made of plastic, with clamp cover, the lower part is provided with 4 slotted holes for mounting on a flush-mounting box and is equipped with an expansion port for cable entry. It can also be supplied in a housing made of stainless steel (top and part are made of stainless steel, cover screwed on) as a vandal-proof design in schools, barracks and public buildings, as well as wherever stainless steel fits into the overall design. The CO2 content of the air is determined by means of an NDIR sensor (non-dispersive infrared technology). The measuring range is calibrated for standard use in, for example, homes, conference rooms and offices. Ventilation to occupancy, improvement of well-being, increase of concentration and reduction of energy costs are just a few examples for the deployment of the AERASGARD~ RTM-CO2-SD sensors.
