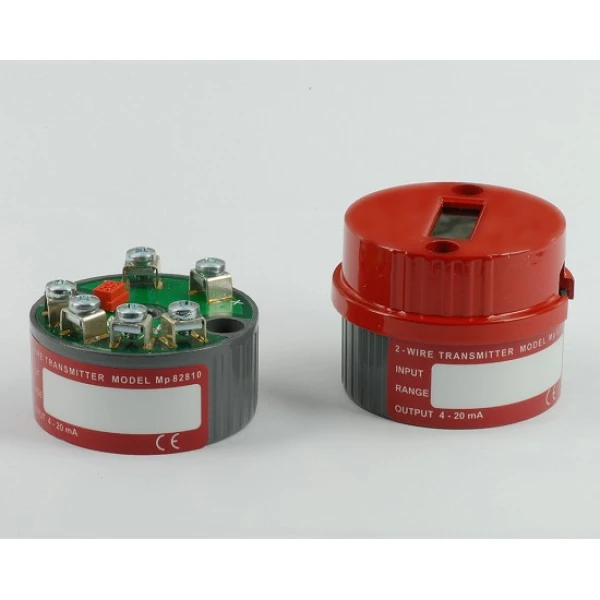

S-Products Headmount temperature transmitter MP82810

S-Products Headmount temperatuurtransmitter MP82810 - Image 2

S-Products Headmount temperatuurtransmitter MP82810 - Image 3

S-Products Headmount temperature transmitter MP82810

- 2-wire headmount transmitter
- Microprocessor-based
- RTD, T/C, mV and Ohm input
- Fully linearized
- RFI / EMI protected
- Short startup time
- High accuracy (typically 0.1%)
- 5-year warranty
- Optional plug-in readout & header

Description
Downloads

GENERAL
Enter Ohm	Ohm, mV
Enter RTD	Pt100, Pt250, Pt500, Pt1000, Ni100, Ni500, Ni1000, Cu10, Cu100
Enter T / C	K, J, L, T, U, E, R, S, B, C, D, N
Linearization	On off
Minimum span	25 ° C (45 ° F)
Delivery effect	0.001% / V
Other inputs	Ohm, mV
Delivery	5..40 VDC, polarity protection
Long-term drift	± 0.05% / year
Output	4..20 mA or 20..4 mA
Excitation current, RTD	0.1 mA
Payload	Vbat-5V / 20 mA
Resistor sensor cable, RTD	500 Ohm max.
No deviation	± 0.01% / ° C or ± 0.02 ° C / ° C
Resistance sensor cable, T / C	10,000 Ohm max.
Span drift	± 0.01% / ° C or ± 0.01 ° C / ° C
Ambient Operational Temp.	-40 ... + 85 ° C.
Open Circuit Detection	Upscale / downscale
Degree of protection	IP30
Startup time	5 sec.
Storage temperature	-40 ... + 100 ° C.
Warm-up time	2 minutes.
Housing material	Zinc alloy (ZAMAK 5) epoxy coated
Housing dimensions	43mm dia. x 27 mm H. (1.70" x 0.99")
Housing dimensions with readout	47mm dia. x 36 mm H. (1.85" x 1.42")
