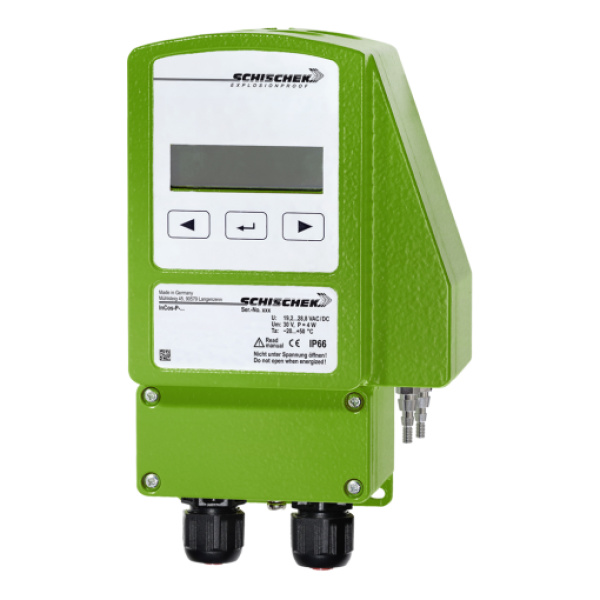

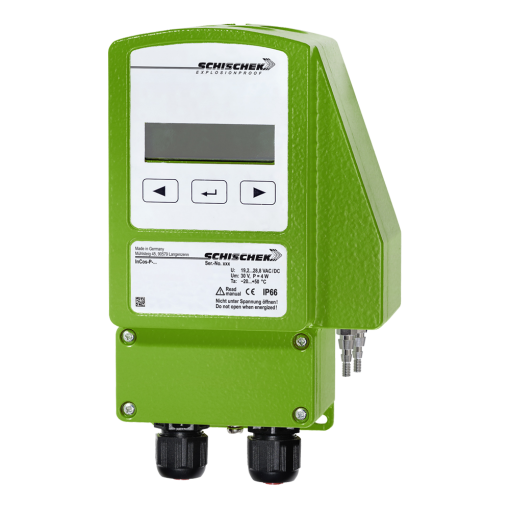

The InBin-P differential pressure switch is specially built for very low pressure ranges from 100 Pa (0.001 Bar) to 5,000 Pa (0.05 Bar). Applicable for HVAC systems, chemical, pharmaceutical and offshore/ onshore installations. All switches can be easily configured on-site. Moreover, each switch has 1 or 2 adjustable switching points within the measuring range and the 100 Pa version even has an adjustable activation delay between 0 and 240 sec.
| Weight | 1 kg |
|---|---|
| Pressure range (Pascal) | 0 … 100, 0 … 500, 0 … 5000 |
| Output | 1 adjustable switching point, 2 adjustable switching points |
| Nutrition | 24 VAC / DC |
| Electrical connection | 2 x M16 x 1.5 |
| Brand | Rotork-Schischek, Schischek |
