Soft Seated Hand Valves H Types

AS-Schneider Soft Seated Hand Valves are available with a lot of options. HA types Hand Valves are bi-directional. HX types Hand Valves also, but the inlet is defined by the extension.

Bore Size: 1/4″ (6.35 mm)

The valves are fully roddable due to the Cone Design Valve Seat.

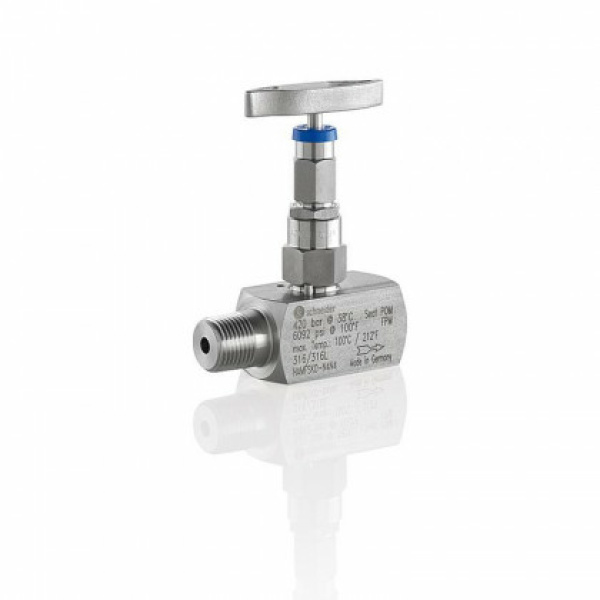

Part No.: HAMFSAD-N4N4

H Hand Valve
A Basic Design: Standard - 1/4″ Bore Size (6.35 mm)
M Inlet: Male Thread
F Outlet: Female Thread
S Material: 1.4401 / 1.4404 / 316 / 316L
A Stem Seal / Packing: PTFE
D Seat Material: POM
–
N4 Inlet Thread Size: 1/2 NPT
N4 Outlet Thread Size: 1/2 NPT
