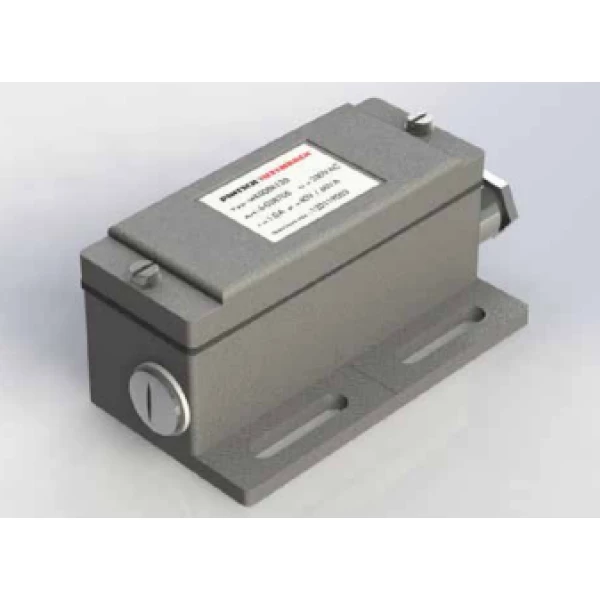

Tiefenbach WK008K214 Magnetic Switch

wK008K...
Former designation BM1 and BM2

Response time (closing): max. 3.5 ms
Fall time (opening): max. 0.2 ms
Bounce duration: max. 0.5 ms
Contacts fitted: see Table 1 (p. 40)
Contact load: see Table 2 (p. 42)
Repeating accuracy: ± 0.2 mm
service life: 109
switching cycles
(depending on the contact load)
Temperature range: L.: -20 ºC to +80 ºC
K.: -45 ºC to +85 ºC
S.: -45 ºC to +85 ºC
Switching frequency: max. 100 Hz
Shock load in 11 ms duration:
Pulse switch max. 50 g
Latching switch max. 15 g
Mounting position: any
Protection class according to DIN 40050:
K with cable compartment IP 54
L with line and
fully encapsulated housing IP 67
Housing: Light metal casting
Silumin
Weight: approx. 0.340 kg
