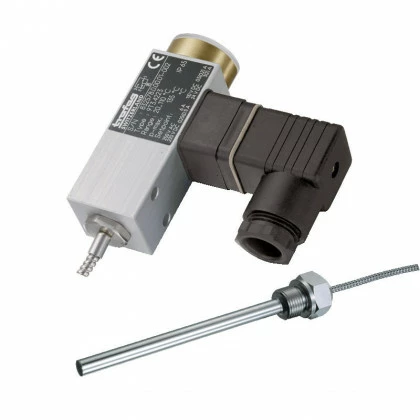

Trafag Block thermostat with fixed immersion tube ISPT-474 - ISP11015

• Measuring range [°C] : +20...+110.0
• Sensor: mechanical
• Protection tube length: 150 mm
• Tube material: Nickel plated brass
• Screw Thread: G1/2
• Output : microswitch SPDT
• Gear differential: fixed
• Housing : Alu epoxy coated IP65
• Ambient temperature [°C] : -30...+70
• Accuracy: +/- 2% of full scale
• Setting: external

• Download specifications

Known by the item numbers:

• 474.0323.322.00.8316.0150.58.90.V3
• 474 0323 322 00 8316 0150 58 90 V3
• 474032332200831601505890V3
