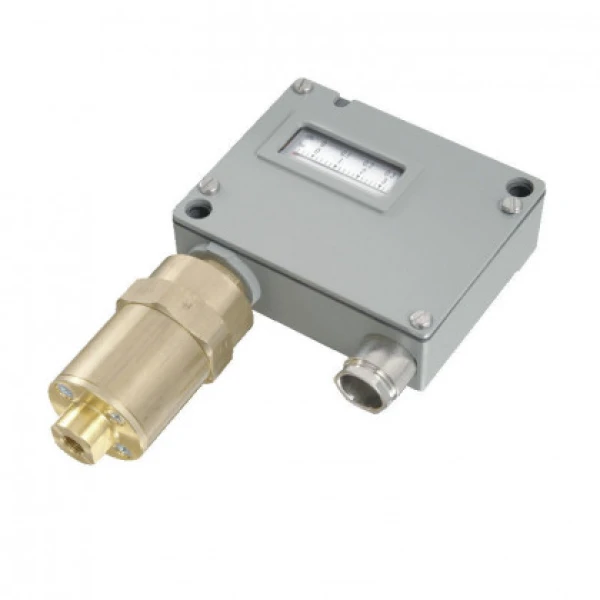

Trafag Differential pressure switches PD3.4

Technical data:

Applications: Shipbuilding, Engine building, Railway, Machine tools, Hydraulics
Measurement principle:Bellow
Approval / conformity: ABS, BV, CCS, DNV, GL, KRS, LRS, RINA, EN60730-1 / EN60730-2-6: Typ 2.B.H
Vibration switch 23/26: 5 ... 25 Hz: ± 1.6 mm, 25 ... 100 Hz: 4 g
Pressure connections: G1/4 "f, G1/8 "f, G1/2 "outside
Media temperature: -40 ° C ... + 150 ° C
Shock: 50 g / 11 ms
Electrical connections: Screw terminal
Ambient temperature: -25 ° C ... + 70 ° C
Sensor: datasheet
Protection: IP65
Output signal: 1 Floating changeover contact (SPDT)
Measuring range: -1 ... 6 to

Item No.: PST4K1004

PD 920/924/932 Differential Pressure Pressostat

Known by the item numbers:

920 2374 931

9202374931

920.2374.931
