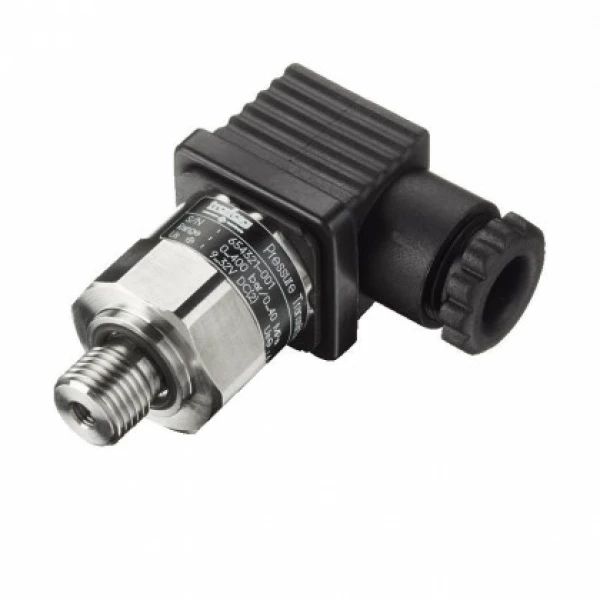

Trafag EPN Pressure Transmitter | type: 8298.79.2517.05.19.43.58.92.V7

Trafag EPN Pressure Transmitter | type: 8298.79.2517.05.19.43.58.92.V7

Measuring range [bar]: 0...+16
Pressure connection: G1/4 BSP male
Sensor material: 1.4542
Ambient temp: -40...125 °C
Accuracy (type) FS, NLH (BSL): ±0.5%
Output: 4...20 mA
Power supply: 24 V DC
Plug: DIN 43650A
Pin connector: Supply= 1, OUT= PIN 2
V7 stop valve G1/4″ internal - G1/4″ external
Material no.: 40739

Pressure range (Bar)	0 … 10, 0 … 100, 0 … 16, 0 … 25, 0 … 250, 0 … 4, 0 … 40, 0 … 400, 0 … 6, 0 … 60
Output	4 ... 20 mA
Overpressure max.	12, 120, 20, 200, 32, 50, 500, 8, 80, 800
Nutrition	9 ...32
Accuracy @25°c typ.	± 0.5
Brand	Trafag
