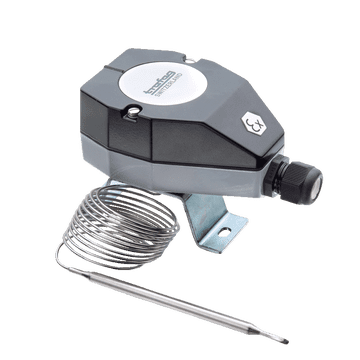

Trafag Explosieveilige Capillair thermostaat EXS150

Trafag Explosieveilige Capillair thermostaat EXS150

Compact design
Rugged housing
Any mounting position possible
Ex db eb IIC T6 Gb
Ex tb IIIC T80 ° C Db

Art.nr.: 414.9131.123.27.02
Type: EXS150
Measuring range [°C] : +20...+150
Sensor: mechanical
Capillary length: 2 meters, stainless steel
Output : microswitch SPDT
Gear differential: adjustable
Housing : Alu epoxy coated IP65
Ambient temperature [°C] : to +70
Accuracy: +/- 2% of full scale
Setting: internal
Approval: SEV 15 ATEX
0156 X IECEx SEV 17.0010X

Weight	1 kg
Sensor material	1.4435 (AISI316L), Copper
Range (°C)	-30 … +40, +20 … +150, +20 … +230, +5 … +95, +70 … +350, 0 … +35
Switching differential	0.7 ... 10 (adjustable), 2 ... 12 (adjustable), 2.5 ... 16 (adjustable), 3 ... 32 (adjustable), 4 ... 40 (adjustable)
Sensor max.	105, 165, 250, 380, 45, 60
Brand	Trafag
