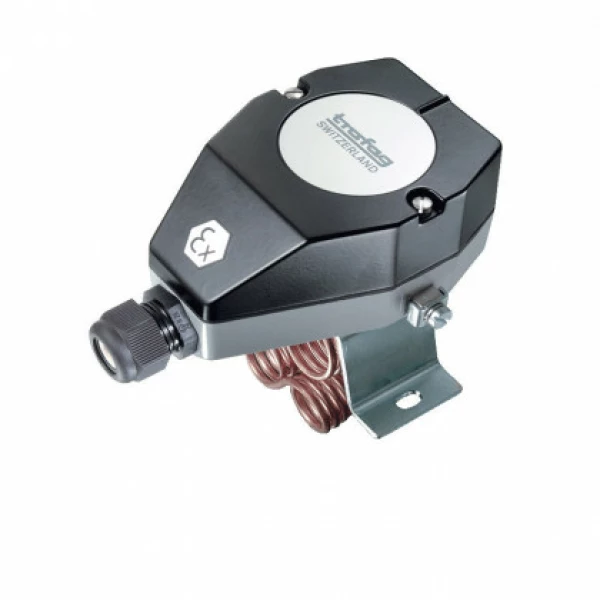

Trafag explosion-proof room thermostat EXAS 409

Trafag explosion-proof room thermostat EXAS 409

Range (°C)

Switching differential

Operating temperature

Clear

Measuring range [°C] : -30...+30 to +60.0
Sensor : mechanical
Output : Ex microswitch SPDT
Switching differential [°C]: 2.5
Housing: Alu epoxy coated IP65
Ambient temperature [°C] : -30...+70
Accuracy: +/- 1.5% of full scale
Class: EEx ed IIC T6
Approvals: PTB 00 ATEX 1001

Download specifications

Weight	N/A
Range (°C)	-30 … +30, 0 … +60, +5 … +35
Switching differential	2.5 (fixed)
Operating temperature	-30 … +40, -30 … +50, -30 … +60
Brand	Trafag
