Range: 0 ... 400 bar
Rel. Acc.: 0.3%, CT25
Conn: G1/4″
Elec.conn.: M12x1 (4-pol.)
Output: 0 ... 5 V DC
Damping el. DI 0.3mm
Mat No. 38993

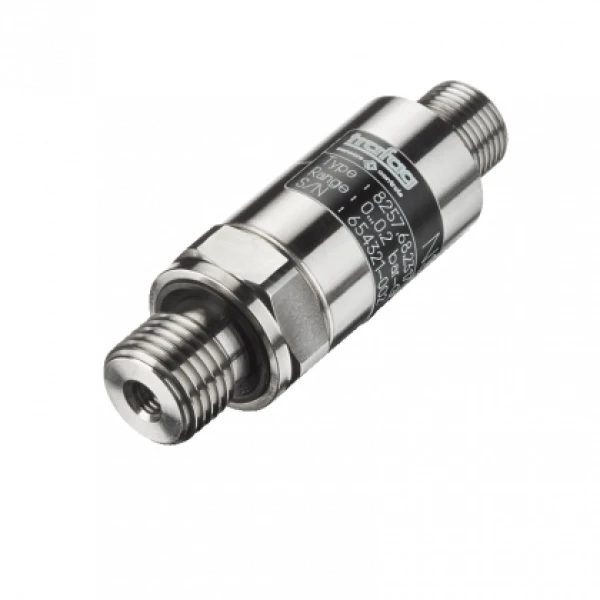

Trafag Hydraulic Pressure Transmitter NAH 8253 - 0 ... 400 Bar, 0.3% accuracy
Hydraulic pressure transmitter NAH 8253 with increased accuracy of 0.3% with triple (optional 5-fold) overpressure protection. The robust design and wide temperature range from -40°C to + 125°C make the NAH 8253 is the ideal solution when pressure must be measured accurately and reliably.
- Measuring accuracy 0.3%
- Fully welded steel sensor system without additional seals
- Excellent long-term stability
- Optional: 5-fold overpressure resistance
- Optional: switching output 1 or 2 PNP transistors
