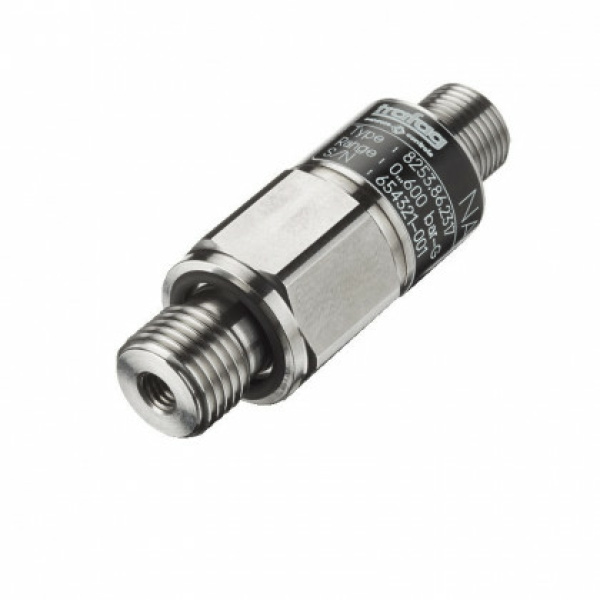

Trafag Hydraulic Pressure Transmitter NAH-8254

Trafag Hydraulic Pressure Transmitter NAH-8254

Pressure range (Bar)

Output

Overpressure max.

Nutrition

Accuracy @25°c typ.

Clear

Measuring range: 0...2.5 to 600.0 bar
Pressure connection: G1/4 BSP male
Sensor type: thin film on steel
Accuracy: ±0.1% FS NLH (BSL)
Output: 4...20 mA
Power supply: 24 V DC
Sensor temperature: -25...+125 °C
Electrical connection: M12x1

Weight	N/A
Pressure range (Bar)	0 … 100, 0 … 16, 0 … 2.5, 0 … 25, 0 … 250, 0 … 4, 0 … 40, 0 … 400, 0 … 6, 0 … 600
Output	4 ... 20 mA
Overpressure max.	1000, 12, 200, 32, 5, 50, 500, 8, 80, 800
Nutrition	9 ...32
Accuracy @25°c typ.	± 0.3
Brand	Trafag

Product Documents

H72304r_EN_8254_NAH_Pressure_Transmitter-1.pdf
