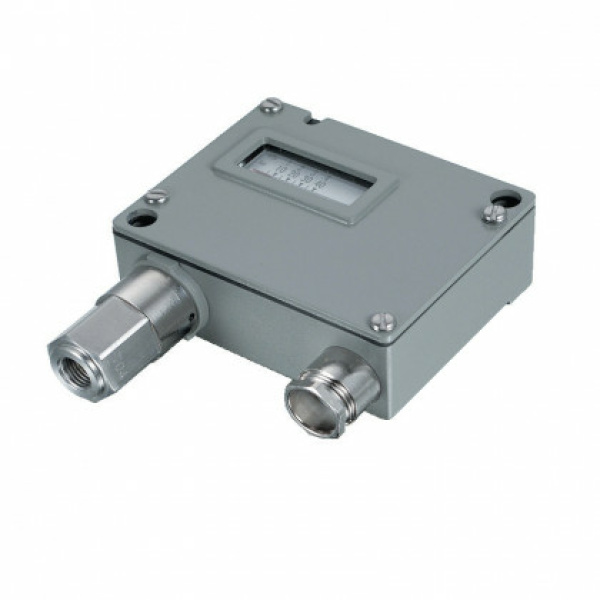

Trafag Piston Pressure Switches PK / 944 Series

Trafag Piston Pressure Switches PK / 944 Series

Pressure range (Bar)

Overpressure max.

Switching differential

Clear

Pressure switch for high pressures and high with fixed switching differential, stainless steel sensor

Range : +1.0...+10.0 to +400.0 bar
Measuring element: piston
Output : microswitch SPDT
Pressure connection : G1/4 BSP female
Housing : Alu. epoxy coating, IP65
Plug : Pg 13.5
Sensor temp [°C] : to +150
Ship Approval: ABS, BV, DNV, GL, KRS, LRS, PRS, RINA

Standard variants:

00118	PK40	Pressostat PK40
00117	PK250	Pressostat PK250
00116	PK100	Pressostat PK100
00115	PK10	Pressostat PK10

Weight	N/A
Pressure range (Bar)	1 … 10, 10 … 100, 25 … 250, 4 … 40
Brand	Trafag
Overpressure max.	100, 200, 400
Switching differential	0.45 ... 0.9 (fixed), 1.8 ... 3.4 (fixed), 3.2 ... 7.5 (fixed), 5.2 ... 16 (fixed)
